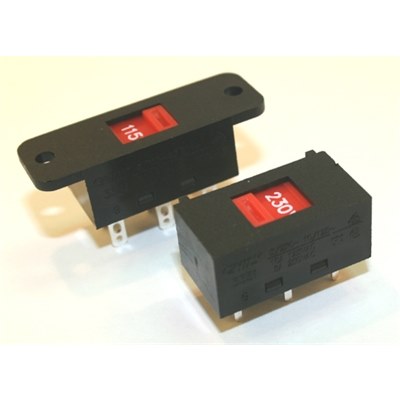

![Voltage selector PCB mount 3331-K1P1B1T3](/images/products/large/800-407-408_big.jpg)
Roll over or select images to enlarge
Voltage Selector Switches
![Brand](/images/brands/Chily_color.jpg)
Two position mains slide switch with 115V and 230V markings.
Actuators are flush with main switch body preventing accidental operation.
VDE, UL & CSA approvedRoHS compliant
Rating: 10A 125V/250VAC
Insulation resistance: >100Mohm@500VAC
Dielectric strength: 1500VAC for 1 min.
Electrical life: 10,000cycles.
Dimensions:
L26.2 x W14 x H:12mm
Fixing centres (400-007 only) 34mm
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Product Specifications
Specification | 800-407 | 800-408 |
---|---|---|
Description
|
Panel Mount DPDT. Chily 3331-K1P1B2T4DDRD | PCB Mount DPDT Chily 3331-K1P1B1T3DDRD |
