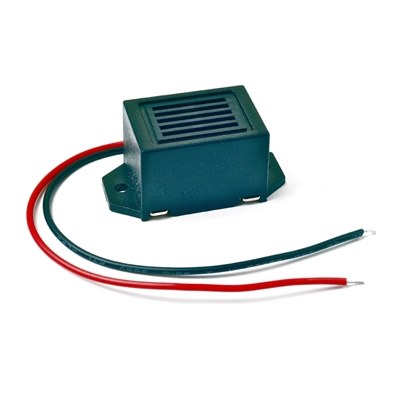

Transistor Oscillator Buzzer
by Plustone
Panel mounting 1.5V, 3V, 6V, 9V and 12V transistor oscillator buzzers.
View product specifications
- Single tone output
- Rated current: 1.5V: 20mA, 3.0-12V: 25mA
- Frequency: 400±100Hz
- Sound output: 70-75dB@30cm
- 100mm red & black wire leads (AWG26 – UL1095)
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Product Specifications
| Specification | 400-069 | 400-070 | 400-071 | 400-072 | 400-074 |
|---|---|---|---|---|---|
|
Operating Range
|
1.2-3V | 2-4V | 4-8V | 6-12V | 9-15V |
|
Nom. Voltage
|
1.5V | 3V | 6V | 9V | 12V |
