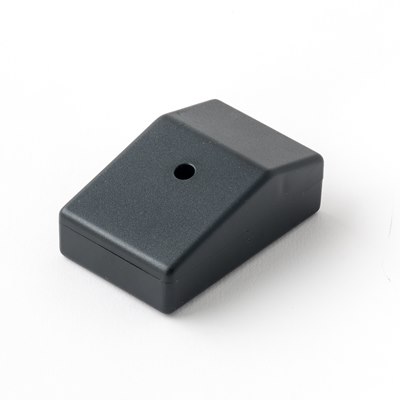

SCB Miniature Sloping Module Case (SCB1)
by BCL
A highly adaptable miniature case ergonomically designed for desk, dashboard, pocket etc. and can be used either way up for the desired application.
Manufactured from high-impact black or white ABS with single self-tapping screw fixing with a matt finish on all surfaces except for a polished recessed panel on the largest flat surface A cable knock-out is provided for flying lead applications.
| Dimensions | 71 × 44 × 28 mm |
|---|---|
| Weight | 0.0219 kg |
| Colour | Black |
| Material | ABS |
| Comes With | Cable knock-out |
| Finish | Matt Finish |
| Feature | Ergonomically Designed |
| Part Number | SCB1 |
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Product Specifications
| Specification | 880-019B | 880-019W |
|---|---|---|
|
Type
|
SCB1 - Black | SCB1 - White |
|
External Dims. LxWxH(max)
|
71x44x28mm | 71x44x28mm |
