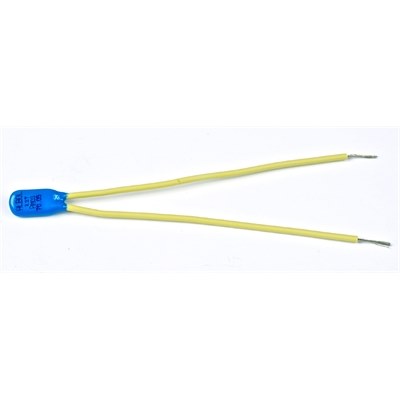

AM03 Thermal Circuit Breakers; Wire lead
by ALBOL
ALBOL AM03 Series
Miniature temperature sensitive bimetal auto-resetting circuit breakers housed in an epoxy sealed casing with wire lead terminations.
Suitable for direct assembly use in windings of motors and transformers, or for general use with other electrical equipment.
Reset occurs when the operating temperature of the breaker has reduced by approx. 30°C.
- Rated voltage: 250V
- Rated current: 2.5A
- Internal resistance: 50mΩ
- Dimensions: 16 x 9 x 4mm
- Lead length 100mm
RoHS compliant
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Product Specifications
| Specification | 650-046 | 650-051 | 650-056 | 650-060 | 650-061 | 650-066 |
|---|---|---|---|---|---|---|
|
°C Cutout Temp.
|
70° | 80° | 90° | 100° | 110° | 120° |
