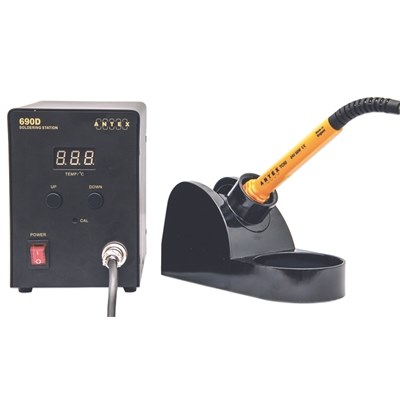

Antex U8825F0 690D Digital Soldering Station
Brand
Scroll Down for Pricing Options
Digital Soldering Station 690D,50W/230V, Temperature Controlled U8825F0
Roll over or select images to enlarge

Antex U8825F0 690D Digital Soldering Station

Brand
Scroll Down for Pricing Options
The Antex 660A analogue soldering station from is a temperature
controlled station which has been designed to ensure quality soldering in a
variety of applications. Station includes power supply, ST6A iron stand and a
lightweight 50W industrial grade soldering iron fitted with silicone
heat-resistant cable and a 2.3mm (1100) bit.
Temperature range continually adjustable from 200°C to 450°C.
LEDs indicate mains power and iron power.
Housed in a robust metal enclosure, which is suitable for
the most demanding industrial and educational environments.
Replacement bits and soldering irons are available separately.
Fully compatible with the latest European EMC and CE regulations.

Supply voltage - 230VAC, Iron voltage - 24V.
Power - 50 Watts, Leakage current <2.0µA

Specification – Iron/Station:
Max power: 60W
Temperature range: 200-450°C
Temperature stability: ± 2°C No load
Input Voltage: 230V/50Hz
Output Voltage: 24VAC
Temp. rise (20-350°C): 55 seconds
Weight: 2.5Kg
Dims: 160x95x141

Features:
  • Digital temperature control
  • Suitable for lead free soldering
  • Fill range of spare tips available
  • Sensor close to tip for fast temp. feedback
  • Digital temperature calibration

Set includes: Controller, TC50 soldering iron, and ST6A soldering iron stand.
View product specifications
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Description
Add to basket
Request Lead Time
Price Each Exc VAT (Inc VAT)
Stock Qty: 0

Product Specifications

Specification 845-144
Description
Soldering station 690D U8825F0
