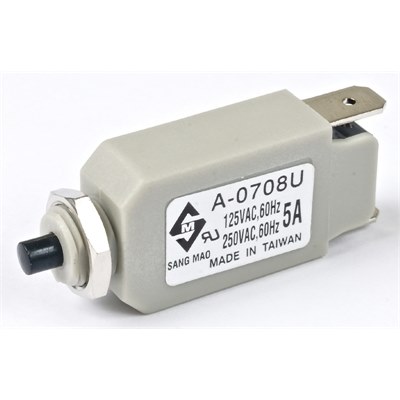

Thermal Circuit Breaker - Panel Mount, Single Pole
by CLIFF
Miniature panel mounting thermal circuit breakers. Single pole, manual reset. 6.35 x 0.8mm faston terminals.
Body dimensions 28 x 15 x 11mm. Panel cutout 10mm. Supplied with fixing nut.
| Interrupt capacity: | 1000A @ 120VAC |
| 200A @ 240VAC | |
| Dielectric strength: | 1500VAC / 1 min. |
| Typical contact life: | 500 cycles @ 150% of rating |
RoHS compliant
*** AVAILABLE UNTIL STOCKS EXHAUSTED ***
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Product Specifications
| Specification | 650-141 | 650-142 | 650-144 | 650-146 |
|---|---|---|---|---|
|
Int. resistance
|
0.12W | 0.075W | 0.02W | 0.015W |
|
Rating
|
5A | 6A | 8A | 10A |
