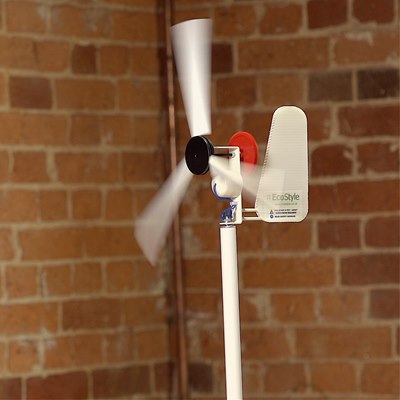

The Wind Turbine Kit is a working model of a real wind turbine.

This interactive set shows how wind power can be harnessed to generate electricity, either indoors with a fan or outdoors in the wind. Assembled in minutes, it can be used at all stages of education from primary school to university level to learn about renewable energy.

  • Power the electric motor, buzzer and LED modules
  • Experiment with two, three or six blades, adjust blade angles, and measure output on the voltmeter
  • Explore the relationship between gearing and power output with three gear ratios
  • Automatically turns to face into the wind direction
  • Durable, with a storage case to keep components organised and protected

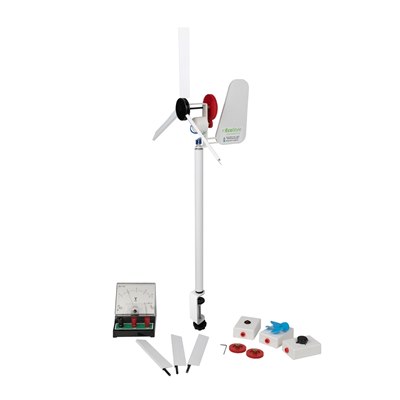

Kit Contents

  • Turbine nacelle with generator and tailplane
  • Desk-mounted tower
  • Two 500mm leads and 4mm stackable plugs
  • 6-way turbine hub
  • Six turbine blades

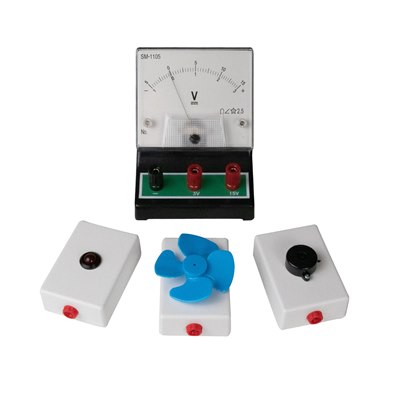

  • Motor, LED and buzzer modules
  • Dual-scale analogue voltmeter
  • Gears (1 x 58-tooth, 2 x 38-tooth, 1 x 18-tooth)
  • 1.5mm hex key for gears
  • Assembly and operating instructions
  • Storage case

Specifications

  • Height: 800mm
  • Blade diameter: 450mm
  • Blade options: 2, 3 or 6
  • Generator voltage: 0-3V
  • Voltmeter range: 0-3V, 0-15V
  • Gear ratios: 3:1, 1:1, 1:3
  • Clamp size: to suit 18-30mm tabletop
  • Storage case: 490 x 300 x 110mm
  • Total weight: 1250g
