Vandal Resistant 16mm switch - IP65 sealed

Brand
Scroll Down for Pricing Options
16mm Vandal switch - Flat buttonAV0630C940
Roll over or select images to enlarge

Vandal Resistant 16mm switch - IP65 sealed

Brand
Scroll Down for Pricing Options

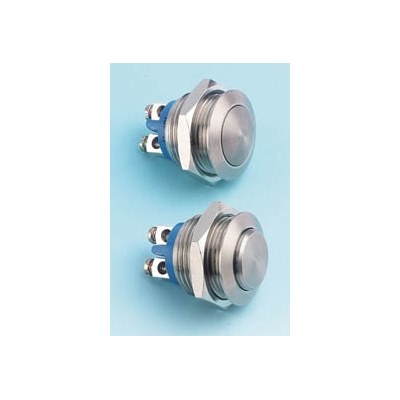

Robust stainless steel vandal resistant switches with SPNO momentary action.
Sealed to IP65. Available with either flat or curved (dome) actuators.
Through panel mounting. Connection via screw terminals.

Rating: 200mA resistive @ 48VDC
Contact resistance:<50mΩ max.
Insulation resistance:>1000MΩ @ 500VDC
Operating life:>50,000 cycles full load.
Dims: 16mm dia. x 24mm H
Panel cutout:16.2mm
Panel thicknes: 6mm max.

RoHS compliant

View product specifications
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Description
Add to basket
Price Each Exc VAT (Inc VAT)
Price Each Exc VAT (Inc VAT)

Product Specifications

Specification 800-537 800-538
Description
16mm switch - Flat button. Apem AV0630C940 16mm switch - Curved button Apem AV1630C940
