NEC Telecom Relays EA2 Series - DPCO 1A

Scroll Down for Pricing Options

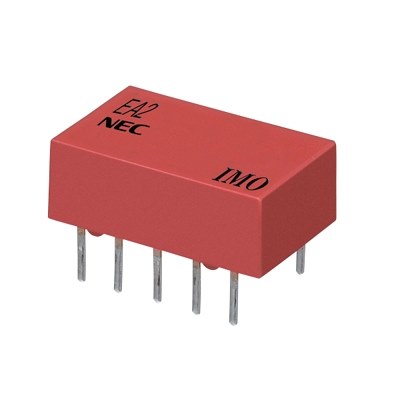

Relay EA2 1A 5VDC
Roll over or select images to enlarge

NEC Telecom Relays EA2 Series - DPCO 1A

Scroll Down for Pricing Options

Compact sealed PCB relay with Double pole changeover contacts. High sensitivity

UL & CSA approved.

RoHS compliant

Contact form:2CO (DPDT)
Contact rating:1A 250VAC/220VDC
Contact material:Silver alloy. Gold overlay
Operate/release:2ms/1ms
Coil consumption:140mW
Temperature range:-40°C to +85°C
Dimensions:14Lx 8.9W x 5.2H
View product specifications
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Add to basket

Product Specifications

Specification 820-460 820-461 820-462
Max. Switching Capacity
30W/62.5VA 30W/62.5VA 30W/62.5VA
Coil Voltage
5VDC 12VDC 24VDC
Coil Resistance
178 ohms 1028 ohms 2880 ohms
