CR12 CF resistors (0.125W) - Pack 1000

Brand
Scroll Down for Pricing Options
PK 1000 CR12 Resistor 10R
Roll over or select images to enlarge

CR12 CF resistors (0.125W) - Pack 1000

Brand
Scroll Down for Pricing Options

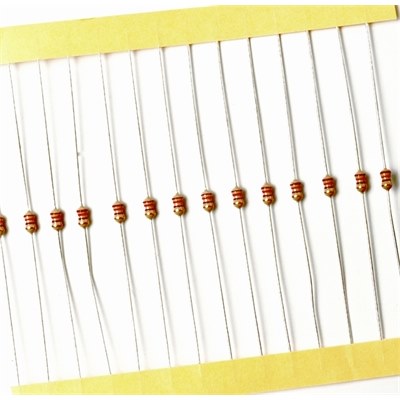

CR12 high stability carbon film resistors, suitable for industrial and consumer applications. Supplied taped and reeled on 5mm spacing. Conformal multi-coating, resistant to solvents as per MIL-STD-202E-215. EIA standard colour coding. Meets or exceeds EIA-RS-196A, JIS-C-6402 & IEC-115.
Temperature range: -25 to +70°C
Wattage: 0.125W
E12 resistance range: 10ΩR-1MΩ
Max. working voltage: 200V
Max. overload voltage: 400V
Body dims. (L x dia): 3.5 x 1.7mm
Leads dims. (L x dia): 28 x 0.5mm

RoHS compliant


Available CR12 resistance values:

47R
330R
2.2K
15K
100K
680K
56R
390R
2.7K
18K
120K
820K
10R
68R
470R
3.3K
22K
150K
1.0M
12R
82R
560R
3.9K
27K
180K
15R
100R
680R
4.7K
33K
220K
18R
120R
820R
5.6K
39K
270K
22R
150R
1.0K
6.8K
47K
330K
27R
180R
1.2K
8.2K
56K
390K
33R
220R
1.5K
10K
68K
470K
39R
270R
1.8K
12K
82K
560K

The order codes below are for CR12 supplied in boxes of 1000 only.
For smaller pack quantities please go back to carbon film resistor page.

View product specifications
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Add to basket

Product Specifications

Specification 475-226 475-228 475-230 475-232 475-234 475-236 475-238 475-240 475-242 475-244 475-246 475-248 475-250 475-252 475-254 475-256 475-258 475-260 475-262 475-264 475-266 475-268 475-270 475-272 475-274 475-276 475-278 475-280 475-282 475-284 475-286 475-288 475-290 475-292 475-294 475-296 475-298 475-300 475-302 475-304 475-306 475-308 475-310 475-312 475-314 475-316 475-318 475-320 475-322 475-324 475-326 475-328 475-330 475-332 475-334 475-336 475-338 475-340 475-342 475-344 475-346
Value
10R 12R 15R 18R 22R 27R 33R 39R 47R 56R 68R 82R 100R 120R 150R 180R 220R 270R 330R 390R 470R 560R 680R 820R 1K 1.2K 1.5K 1.8K 2.2K 2.7K 3.3K 3.9K 4.7K 5.6K 6.8K 8.2K 10K 12K 15K 18K 22K 27K 33K 39K 47K 56K 68K 82K 100K 120K 150K 180K 220K 270K 330K 390K 470K 560K 680K 820K 1M
