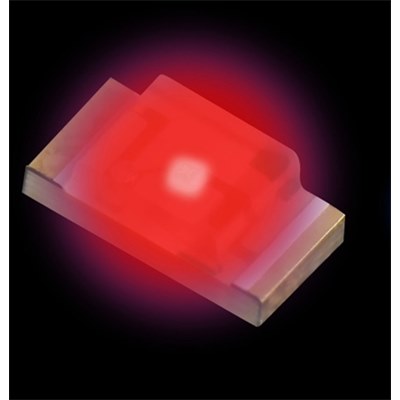

Kingbright KP-2012 series 0805 (2.0x1.2x1.1mm)

Brand
Scroll Down for Pricing Options
Super Bright Red 0603640nm 120°
Roll over or select images to enlarge

Kingbright KP-2012 series 0805 (2.0x1.2x1.1mm)

Brand
Scroll Down for Pricing Options
Water Clear Lens
2.0mmx1.25mm SMD LED,1.1mm thickness.
Low power consumption.
Wide viewing angle 140°
Ideal for backlight and indicator.
Package : 2000pcs / reel.
Moisture sensitivity level : level 3.
RoHS compliant.
View product specifications
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Add to basket

Product Specifications

Specification 850-860 850-867 850-890 851-180 850-892 850-856 851-110 850-862 851-112 850-864 850-894 851-109 850-857 850-861 851-108 851-111 850-858 850-859 850-896
View angle
120° 120° 120° 140° 120° 120° 140° 120° 140° 120° 120° 120° 120° 120° 140° 140° 120° 120° 150°
Colour
Super Bright Red High Efficiency Red Red Superbright Hyper Red Super Bright Green Superbright Red Green Super Bright Green True Green Yellow Yellow Super Bright Yellow Super Bright Green Super Bright Orange Super Bright Orange Blue Yellow Blue Blue
Kingbright Ref.
KP-2012SRC-PRV KP-2012EC KP-3216SRC-PRV KP-3216SURCK KP-3216SGC KP-1608-SRC-PRV KP-2012CGCK KP-2012SGC KP-2012ZGC KP-2012YC KP-3216YC KP-2012SYCK KP-1608-SGC KP-2012SEC KP-2012SECK KP-2012QBC-D KP-1608YC KP-1608-QBC-D KP-3216QBC-C
Int mcd typ @ 20mA
Typ. 100 Typ. 15 Typ. 80 Typ. 230 Typ. 15 Typ. 100 Typ. 50 Typ. 15 Typ. 400 Typ. 8 Typ. 8 Typ. 150 Typ. 15 Typ. 200 Typ. 250 Typ. 100 Typ. 8 Typ. 60 Typ. 60
Size
0805 0805 1206 1206 1206 0603 0805 0805 0805 0805 1206 0805 0603 0805 0805 0805 0603 0603 1206
