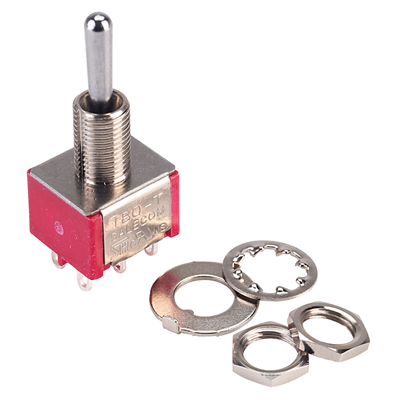

Salecom T80-T Series Miniature Toggle Switch
Salecom offer a range of high quality panel mounting miniature electrical toggle switches suitable for industrial,
commercial, test and aerospace applications.
Available in a variety of contact and switching configurations, on-off, latching and momentary options.
Stainless steel housing with silver plated copper-alloy contacts,
Salecom toggle switches are widely used in telecommunications, instrumentation, medical equipment,
computer peripherals and network products.
As the UK distributor for Salecom, JPR hold substantial stocks
of many T80-T versions. Non-stocked versions are also available to order subject to MOQ.
View product specifications
commercial, test and aerospace applications.
Available in a variety of contact and switching configurations, on-off, latching and momentary options.
Stainless steel housing with silver plated copper-alloy contacts,
Salecom toggle switches are widely used in telecommunications, instrumentation, medical equipment,
computer peripherals and network products.
As the UK distributor for Salecom, JPR hold substantial stocks
of many T80-T versions. Non-stocked versions are also available to order subject to MOQ.
| Rating: | 5A 120VAC/28VDC 2A 240VAC |
| Dielectric Strength: | 1500V RMS |
| Temperature range: | -30° to +85°C. |
| Insulation resistance: | >1000MΩ |
| Contact resistance: | <10mΩ maximum initial |
| Electrical life: | 50,000 make/break cycles at full load |
| Case material: | Diallyl phthalate (DAP) |
| Contact material: | Coin silver, silver plated |
| Panel cutout 6.35mm |
| UL approved. |
For biased switches (on) denotes momentary action (see table information)
Actuator length 10.41mm. Salecom T80-T series.
RoHS compliant
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Details
Order Code
Description
Price Each Exc VAT (Inc VAT)
1+
25+
100+
500+
Add to basket
Request Lead Time
Order Code:
Description:
T8011-SEBQ-H DPDT toggle switch on-on
T8011-SEBQ-H DPDT toggle switch on-on
£1.014
(£1.217)
£0.910
(£1.092)
£0.862
(£1.034)
£0.827
(£0.992)
Price Each Exc VAT (Inc VAT)
Stock Qty: 0
1+ @ £1.014
(£1.217)
25+ @ £0.910
(£1.092)
100+ @ £0.862
(£1.034)
500+ @ £0.827
(£0.992)
hide price breaks
view price breaks
Stock Qty: 0
Order Code:
Description:
T8012-SEBQ-H DPDT toggle switch on-off-on
T8012-SEBQ-H DPDT toggle switch on-off-on
£1.158
(£1.390)
£1.036
(£1.243)
£0.970
(£1.164)
£0.920
(£1.104)
Price Each Exc VAT (Inc VAT)
Stock Qty: 38
1+ @ £1.158
(£1.390)
25+ @ £1.036
(£1.243)
100+ @ £0.970
(£1.164)
500+ @ £0.920
(£1.104)
hide price breaks
view price breaks
Stock Qty: 38
Order Code:
Description:
T8012A-SEBQ-H DPDT toggle switch (on)-off-(on)
T8012A-SEBQ-H DPDT toggle switch (on)-off-(on)
£1.256
(£1.507)
£1.081
(£1.297)
£1.047
(£1.256)
£1.014
(£1.217)
Price Each Exc VAT (Inc VAT)
Stock Qty: 295
1+ @ £1.256
(£1.507)
25+ @ £1.081
(£1.297)
100+ @ £1.047
(£1.256)
500+ @ £1.014
(£1.217)
hide price breaks
view price breaks
Stock Qty: 295
Order Code:
Description:
T8012B-SEBQ-H DPDT On-off-(on) Min Toggle Switch
T8012B-SEBQ-H DPDT On-off-(on) Min Toggle Switch
£1.637
(£1.964)
£1.555
(£1.866)
£1.473
(£1.768)
£1.350
(£1.620)
Price Each Exc VAT (Inc VAT)
Stock Qty: 100
1+ @ £1.637
(£1.964)
25+ @ £1.555
(£1.866)
100+ @ £1.473
(£1.768)
500+ @ £1.350
(£1.620)
hide price breaks
view price breaks
Stock Qty: 100
Order Code:
Description:
T8013(2P)-SEBQ-H SPST toggle switch on-off
T8013(2P)-SEBQ-H SPST toggle switch on-off
£0.772
(£0.926)
£0.683
(£0.820)
£0.640
(£0.768)
£0.606
(£0.727)
Price Each Exc VAT (Inc VAT)
Stock Qty: 0
1+ @ £0.772
(£0.926)
25+ @ £0.683
(£0.820)
100+ @ £0.640
(£0.768)
500+ @ £0.606
(£0.727)
hide price breaks
view price breaks
Stock Qty: 0
Order Code:
Description:
T8013-SEBQ-H SPDT toggle switch on-on
T8013-SEBQ-H SPDT toggle switch on-on
£0.870
(£1.044)
£0.750
(£0.900)
£0.673
(£0.808)
£0.640
(£0.768)
Price Each Exc VAT (Inc VAT)
Stock Qty: 832
1+ @ £0.870
(£1.044)
25+ @ £0.750
(£0.900)
100+ @ £0.673
(£0.808)
500+ @ £0.640
(£0.768)
hide price breaks
view price breaks
Stock Qty: 832
Order Code:
Description:
T8013A-SEBQ-H SPDT toggle switch on-(on)
T8013A-SEBQ-H SPDT toggle switch on-(on)
£1.191
(£1.429)
£0.959
(£1.151)
£0.870
(£1.044)
£0.815
(£0.978)
Price Each Exc VAT (Inc VAT)
Stock Qty: 159
1+ @ £1.191
(£1.429)
25+ @ £0.959
(£1.151)
100+ @ £0.870
(£1.044)
500+ @ £0.815
(£0.978)
hide price breaks
view price breaks
Stock Qty: 159
Order Code:
Description:
T8014-SEBQ-B3H SPDT toggle switch on-off-on
T8014-SEBQ-B3H SPDT toggle switch on-off-on
£0.926
(£1.111)
£0.827
(£0.992)
£0.788
(£0.946)
£0.740
(£0.888)
Price Each Exc VAT (Inc VAT)
Stock Qty: 526
1+ @ £0.926
(£1.111)
25+ @ £0.827
(£0.992)
100+ @ £0.788
(£0.946)
500+ @ £0.740
(£0.888)
hide price breaks
view price breaks
Stock Qty: 526
Order Code:
Description:
T8014B-SEBQ-H SPDT toggle switch on-off-(on)
T8014B-SEBQ-H SPDT toggle switch on-off-(on)
£1.144
(£1.373)
£1.019
(£1.223)
£0.972
(£1.166)
£0.915
(£1.098)
Price Each Exc VAT (Inc VAT)
Stock Qty: 249
1+ @ £1.144
(£1.373)
25+ @ £1.019
(£1.223)
100+ @ £0.972
(£1.166)
500+ @ £0.915
(£1.098)
hide price breaks
view price breaks
Stock Qty: 249
Order Code:
Description:
T8014A-SEBQ-H SPDT toggle switch (on)-off-(on)
T8014A-SEBQ-H SPDT toggle switch (on)-off-(on)
£1.014
(£1.217)
£0.915
(£1.098)
£0.860
(£1.032)
£0.815
(£0.978)
Price Each Exc VAT (Inc VAT)
Stock Qty: 408
1+ @ £1.014
(£1.217)
25+ @ £0.915
(£1.098)
100+ @ £0.860
(£1.032)
500+ @ £0.815
(£0.978)
hide price breaks
view price breaks
Stock Qty: 408
Order Code:
Description:
T8301-SEBQ-H 3PDT toggle switch on-on
T8301-SEBQ-H 3PDT toggle switch on-on
£1.819
(£2.183)
£1.632
(£1.958)
£1.532
(£1.838)
£1.466
(£1.759)
Price Each Exc VAT (Inc VAT)
Stock Qty: 363
1+ @ £1.819
(£2.183)
25+ @ £1.632
(£1.958)
100+ @ £1.532
(£1.838)
500+ @ £1.466
(£1.759)
hide price breaks
view price breaks
Stock Qty: 363
Order Code:
Description:
T8305-SEBQ-H 3PDT toggle switch on-off-on
T8305-SEBQ-H 3PDT toggle switch on-off-on
£2.083
(£2.500)
£1.737
(£2.084)
£1.597
(£1.916)
£1.505
(£1.806)
Price Each Exc VAT (Inc VAT)
Stock Qty: 137
1+ @ £2.083
(£2.500)
25+ @ £1.737
(£2.084)
100+ @ £1.597
(£1.916)
500+ @ £1.505
(£1.806)
hide price breaks
view price breaks
Stock Qty: 137
Order Code:
Description:
T8401-SEBQ-H 4PDT toggle switch on-on
T8401-SEBQ-H 4PDT toggle switch on-on
£2.315
(£2.778)
£2.096
(£2.515)
£1.841
(£2.209)
£1.760
(£2.112)
Price Each Exc VAT (Inc VAT)
Stock Qty: 103
1+ @ £2.315
(£2.778)
25+ @ £2.096
(£2.515)
100+ @ £1.841
(£2.209)
500+ @ £1.760
(£2.112)
hide price breaks
view price breaks
Stock Qty: 103
Order Code:
Description:
T8405-SEBQ-H 4PDT toggle switch on-off-on
T8405-SEBQ-H 4PDT toggle switch on-off-on
£2.912
(£3.494)
£2.621
(£3.145)
£2.475
(£2.970)
£2.330
(£2.796)
Price Each Exc VAT (Inc VAT)
Stock Qty: 186
1+ @ £2.912
(£3.494)
25+ @ £2.621
(£3.145)
100+ @ £2.475
(£2.970)
500+ @ £2.330
(£2.796)
hide price breaks
view price breaks
Stock Qty: 186
Product Specifications
| Specification | 800-230 | 800-233 | 800-247 | 800-257 | 800-220 | 800-225 | 800-222 | 800-227 | 800-240 | 800-245 | 800-234 | 800-235 | 800-248 | 800-249 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Manufacturer Ref.
|
T8011-SEBQ-H | T8012-SEBQ-H | T8012A-SEBQ-H | T8012B-SEBQ-H | T8013(2P)-SEBQ-H | T8013-SEBQ-H | T8013A-SEBQ-H | T8014-SEBQ-H | T8014B-SEBQ-H | T8014A-SEBQ-H | T8301-SEBQ-H | T8305-SEBQ-H | T8401-SEBQ-H | T8405-SEBQ-H |
|
Description
|
DPDT on-on | DPDT on-off-on | DPDT (on)-off-(on) | DPDT On-Off-(On) | SPST on-off | SPDT on-on | SPDT on-(on) | SPDT on-off-on | SPDT on-off-(on) | SPDT (on)-off-(on) | 3PDT on-on | 3PDT on-off-on | 4PDT on-on | 4PDT on-off-on |
