LCD Multi Range Panel Meter

Scroll Down for Pricing Options

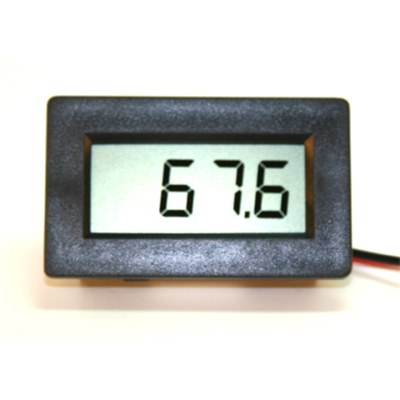

A 3½ digit LCD panel meter, incorporating a low power CMOS A-D converter chip to provide 5 voltage ranges
and 5 current ranges within one unit. Ranges are selected by onboard connectors, and expandable by resistors.
The unit is ready mounted in a facia bezel for snap-fit panel mounting, and is supplied with full datasheet.

Specifications:
Voltage range:0-200mV, 0-2V, 0-20V, 0-200V, 0-2000V.
Current range:0.2mA, 2mA, 20mA, 200mA, 2000mA.
Input impedance:>100Mohm
Accuracy:±0.5% (± 1 digit) 23° ±5°C
Power supply:8-12Vdc (9V battery)
Dimensions - O/A:68W x 41H
Panel cutout:54.5 x 38 mm.
 RoHS Exempt
View product specifications
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Description
Add to basket
Request Lead Time
Price Each Exc VAT (Inc VAT)
Stock Qty: 149

Product Specifications

Specification 375-102
Description
LCD Multi-range panel meter
