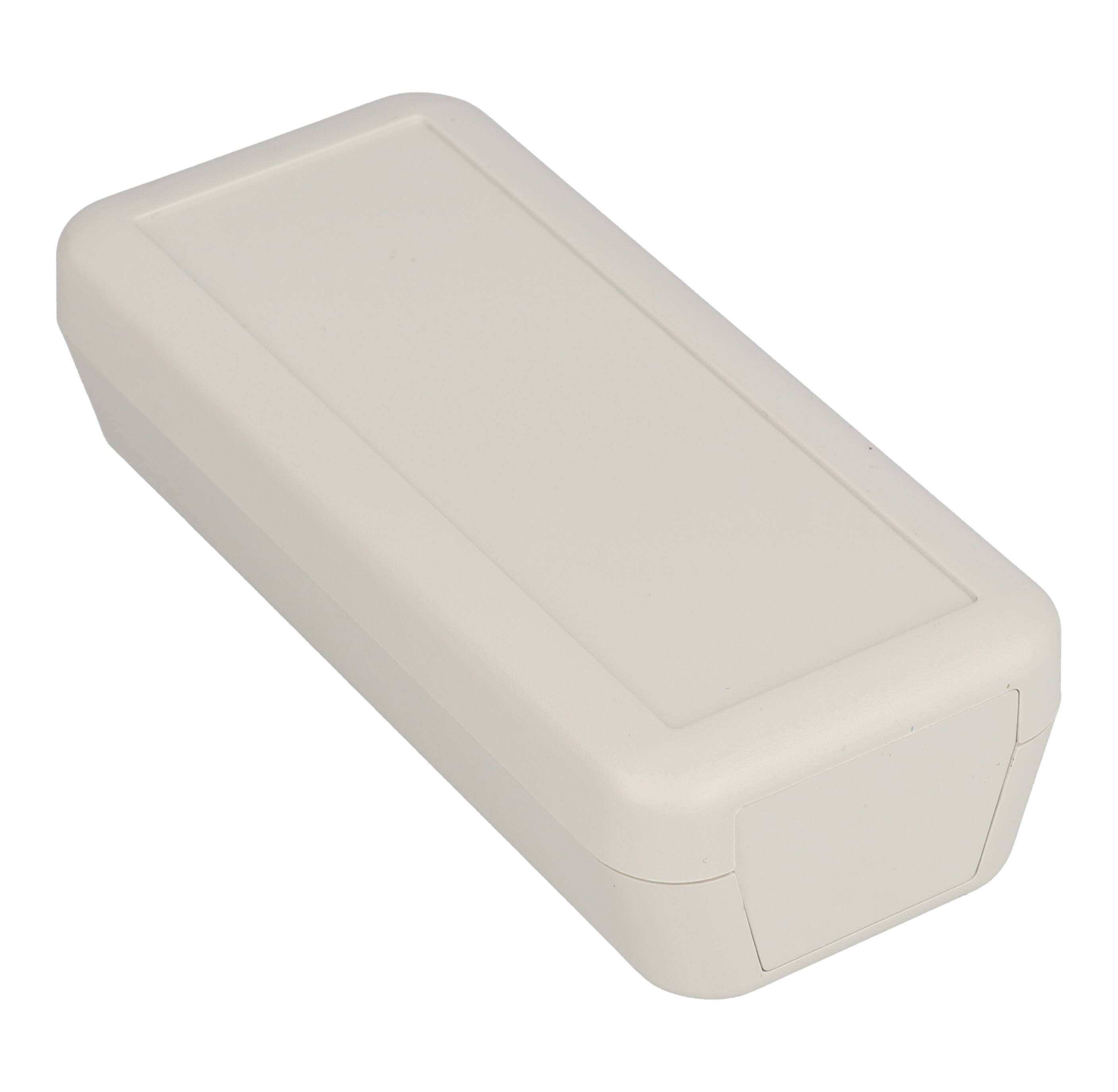

The Hammond 1552 series is a highly versatile range of electronic instrument enclosures, specifically engineered for handheld comfort and functional durability. With an ergonomic profile designed to fit naturally in the hand, these enclosures are the ideal choice for mobile data units, remote controllers, and medical instrumentation, while remaining equally suited for stable desktop applications.
Moulded from flame-retardant UL94-V0 ABS plastic, the 1552 series features a sleek satin texture and a recessed top cover, providing the perfect surface for mounting membrane keypads or displays. Its lap-joint construction ensures a secure fit that protects internal PCBs against dust and splashing water, designed to meet IP54 requirements.
Key Technical Features
- Ergonomic Design: Sculpted for user comfort during prolonged handheld use.
- Modular End Panels: Removable panels allow for easy machining and customisation.
- Integrated Cord Management: Optional rubberised cord grip kits replace standard panels to provide secure, flexible cable entry (2mm to 6mm diameter).
- Safety & Compliance: Enclosures, wall holders, and cable glands are all manufactured from UL94-V0 flame-retardant materials.
- Snap-Closure Sturdiness: Sizes C1 and D1 include snap closures in the side walls for increased structural rigidity.
- Mounting Flexibility: Dedicated wall-mount holder accessories are available to provide a temporary fixed location for your device.
Essential Accessories for the 1552 Range
To provide a complete solution for portable electronics, the 1552 series includes a dedicated ecosystem of accessories designed to enhance connectivity and storage.
Rubberised Cord Grip Kits
Maintain the integrity of your tethered devices with the Hammond 1552 Cord Grip Kit. These kits replace the standard end panel with a dual-material seal made from flexible TPE and hard polycarbonate. They are compatible with wire diameters from 2mm to 6mm and include internal cable tie-downs to ensure your connections are protected from strain.

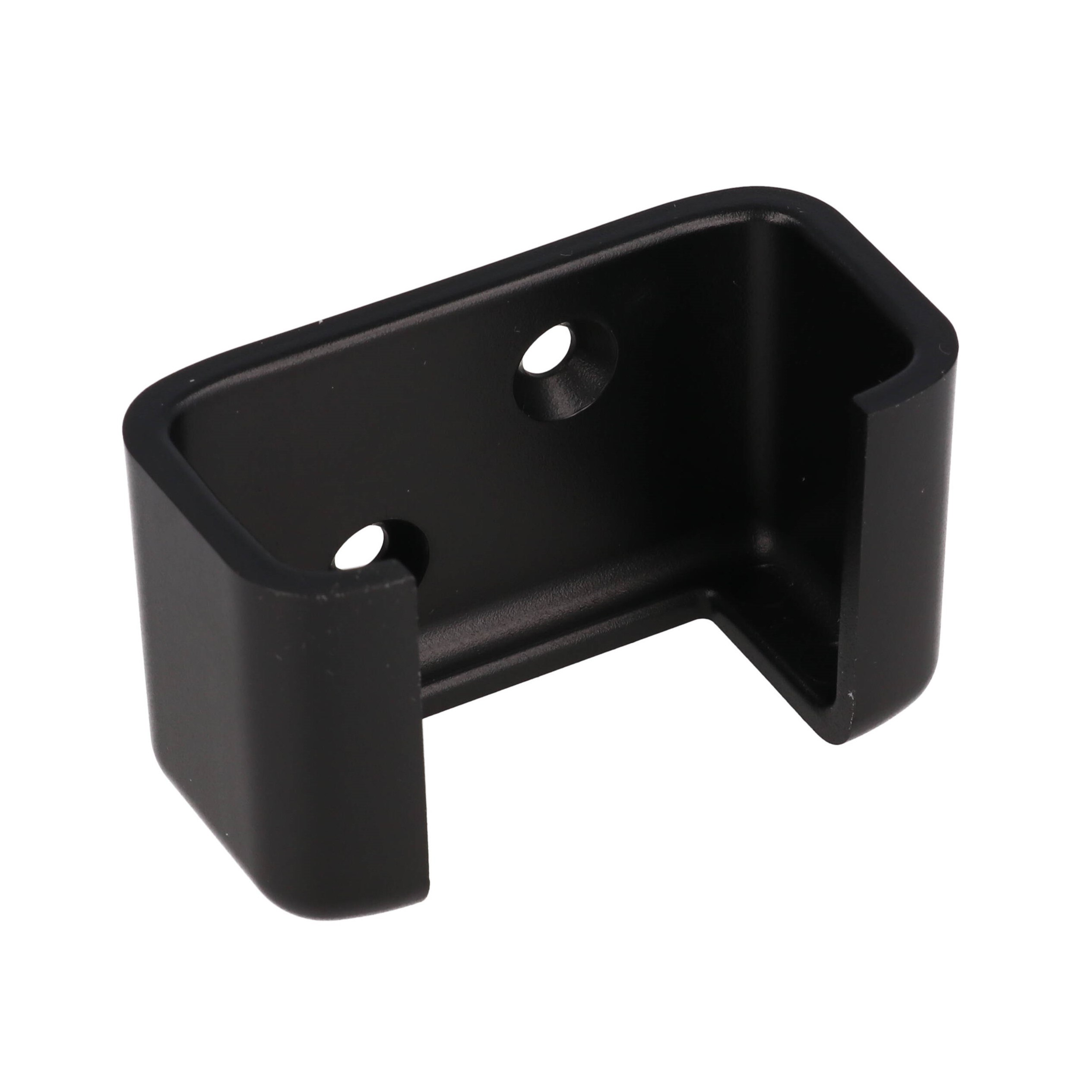

Wall-Mount Holders
For applications that require a handheld device to be temporarily fixed to a surface, the Hammond 1552 Wall Holder offers a professional solution. Moulded from the same UL94-V0 ABS, these holders feature countersunk holes for a flush finish, allowing your instrument to be docked securely when not in use.
