Hammond 1553T Enclosures

Brand
Scroll Down for Pricing Options

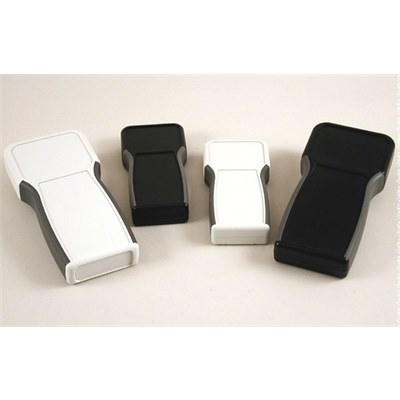

Softside enclosure 1553TBK Black
Roll over or select images to enlarge

Hammond 1553T Enclosures

Brand
Scroll Down for Pricing Options
  • Ergonomically designed for a comfortable fit into the user’s hand.
  • Perfect for instrument or mobile data enclosures requiring a keypad and display.
  • Both the display and keyboard areas are recessed for membrane devices.
  • Molded from flame retardant ABS plastic, choice of black (RAL 9011) or grey (RAL 7035) - material carries a UL flammability rating of 94V-0.
  • Handheld section of enclosure includes a dark grey (RAL 7012) overmold, soft plastic grip.
  • Enclosure is assembled with M3-0.5 x 18 mm Philips machine screws, threaded into integral brass bushings. Perfect for applications when repetitive assembly and disassembly are required.
  • Integral brass bushings are factory inserted into top half of the enclosure (see photos).
  • Lap joint construction provides protection against access of dust and splashing water. Designed to meet IP54.
  • P.C. board standoffs are molded into case top & bottom halves (see drawings or photos for more details).
  • Battery door & compartment version (part numbers ending in "BAT") includes 8 battery clips (for 4 - AA batteries) and two 9 volt (PP3) battery clips.
  • Contains either one or two end panels (depending on version - see table below) - removable for easy modification.
  • Bottom half of enclosure includes molded in label recess on back (2.2" x 1.65" / 56 mm x 42 mm).
View product specifications
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Add to basket

Product Specifications

Specification 880-263 880-264 880-265 880-266 880-258 880-257 880-259 880-260
Dimensions (LxWxH)
165 x 68(80) x 28 165 x 68(80) x 28 165 x 68(80) x 28 165 x 68(80) x 28 210 x 85.9(100) x 32 210 x 85.9(100) x 32 210 x 85.9(100) x 32 210 x 85.9(100) x 32
Ref/Colour
1553TTGY - Grey 1553TTBK -Black 1553TTGYBAT - Grey (with battery compartment) 1553TTBKBAT- Black (with battery compartment) 1553TGY - Grey 1553TBK - Black 1553TBKBAT - Black (with battery compartment) 1553TGYBAT - Grey (with battery compartment)
