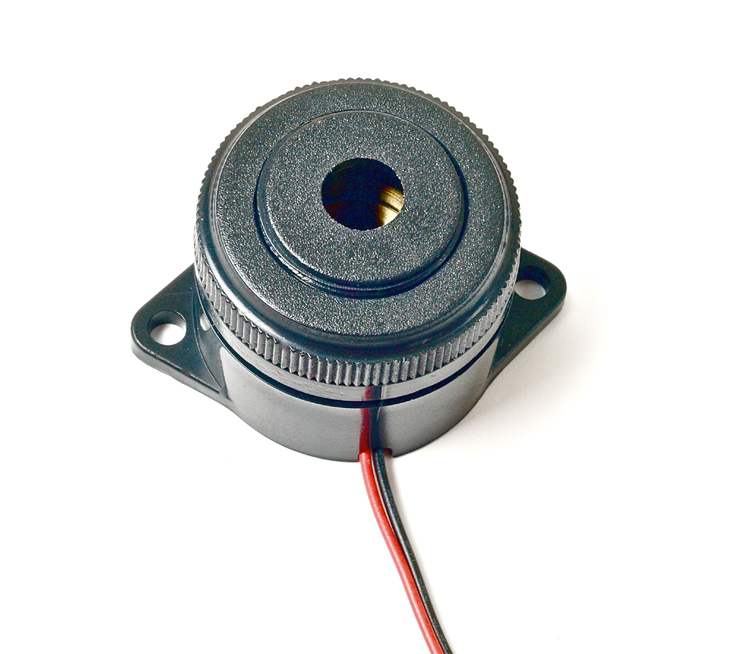

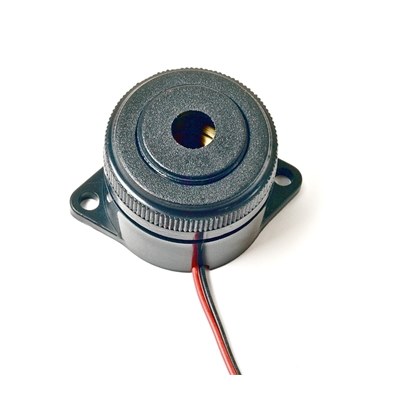

Panel Mounting Piezo Sounders
Medium/high output sounder with built in drive circuit which can be mounted either
behind a panel by utilising the integral threaded collar, or surface mounted via fixing holes.
130mm wire lead connections. Available in single tone or pulse tone versions.
| Frequency: | 3.7kHz |
| Operating Current: | 15mA max. |
| Sound Output: | 85db at 30cm. |
| Temp. range: | -20°C to +60°C |
| Dims: | 29.5mm dia. x 24.5mm h. |
RoHS compliant
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Product Specifications
| Specification | 400-781 | 400-780 | 400-782 |
|---|---|---|---|
|
Operating voltage
|
3-24V DC | 6-16V DC | 10-30V DC |
|
Rated voltage
|
12V DC | 12V DC | 24V DC |
|
Tone
|
Single | Pulse | Single |
