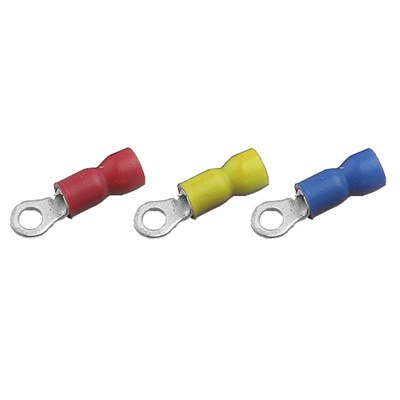

Ring Terminals
Insulated ring terminals with easy cable entry guide which eliminates flared wire strands during cable insertion. Copper terminals to BS6017 with bright electrotinned finish to BS1872, which prevents oxidisation. Insulators are coloured vinyl. All terminals are UL & CSA approved and have full compliance to BS4579.
Current ratings quoted are at 415V AC @ 32°C.
Insulation Colour:
Red - Wire size 0.25-1.65 mm² (AWG22-16)
Blue - Wire size 1.04-2.63 mm² (AWG16-14)
Yellow - Wire size 2.63-6.64 mm² (AWG12-10)
View product specifications
Current ratings quoted are at 415V AC @ 32°C.
Insulation Colour:
Red - Wire size 0.25-1.65 mm² (AWG22-16)
Blue - Wire size 1.04-2.63 mm² (AWG16-14)
Yellow - Wire size 2.63-6.64 mm² (AWG12-10)
RoHS compliant
**** Available until stocks exhausted ****
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Product Specifications
| Specification | 707-010 | 707-030 | 707-048 | 707-051 | 707-053 | 707-054 |
|---|---|---|---|---|---|---|
|
Type
|
Red 25 Amp | Blue 30 Amp | Yellow 48 Amp | Yellow 48 Amp | Yellow 48 Amp | Yellow 48 Amp |
|
Ring Width
|
5.7 | 6.6 | 7.2 | 9.5 | 12.0 | 15.0 |
|
Equiv. BA
|
4 | 6 | 4 | 2 | N.A. | - |
|
Stud size (mm)
|
3.5 | 3.0 | 3.5 | 5.0 | 6.0 | 8.0 |
