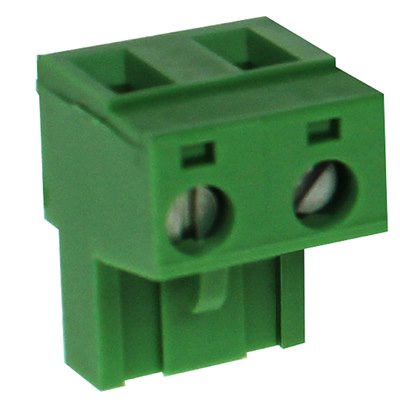

CTB9400 7.5mm Female Plug terminal blocks
by CamdenBoss
CamdenBoss CTB9400 series pluggable female rising clamp terminal blocks
for use with 7.5mm pluggable headers (CTB9500 & CTB9550).
View product specifications
for use with 7.5mm pluggable headers (CTB9500 & CTB9550).
- Horizontal body style
- Screw termination
- M2 steel captive screws
- Pins spacing 3.5mm
- Current rating 12A 500V
- 3kV dielectric strrength
- Tinned phosphor bronze contact material
- UL94V-0 flame retardant polarised mouldings
- Cable size 0.2-2.51.0mm²
- Guided pin alignment
- CUL, UL, VDE and CE approved
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Product Specifications
| Specification | 714-804 | 714-805 | 714-806 | 714-808 | 714-810 |
|---|---|---|---|---|---|
|
Type
|
CTB9400/2 2 pole | CTB9400/3 3 pole | CTB9400/4 4 pole | CTB9400/6 6 pole | CTB9400/8 8 pole |
