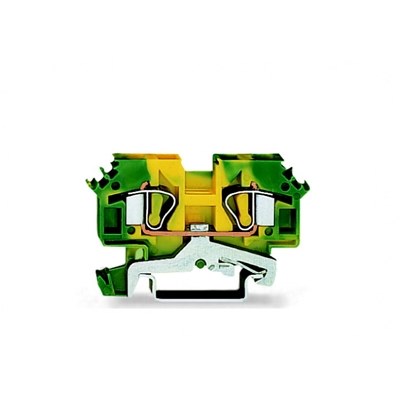

WAGO 282-607 DIN Rail 2 Conductor Terminal
by Wago
WAGO 282-607 Series Din Rail mounted 2 conductor terminal block. 24-10 AWG
Cross section [mm²]: 0.5 - 6 mm²
Cross section [AWG]: 20 - 10 AWG
Connection method: CAGE CLAMP®CONNECTION
Weight: 19.732 g
Colour: green-yellow
Wiring type: Front-entry
No. of connection Points: 2
No. of potentials: 1
Height: 31.5 mm
Height: 1.24 in
Width: 8 mm
Width: 0.315 in
Depth: 62 mm
Depth: 2.44 in
View product specifications
Cross section [mm²]: 0.5 - 6 mm²
Cross section [AWG]: 20 - 10 AWG
Connection method: CAGE CLAMP®CONNECTION
Weight: 19.732 g
Colour: green-yellow
Wiring type: Front-entry
No. of connection Points: 2
No. of potentials: 1
Height: 31.5 mm
Height: 1.24 in
Width: 8 mm
Width: 0.315 in
Depth: 62 mm
Depth: 2.44 in
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Product Specifications
| Specification | 282-607 |
|---|---|
|
Dimensions LxWxH (mm)
|
62x8x31.5 |
|
Type
|
2 Conductor Din Rail Terminal Block |
