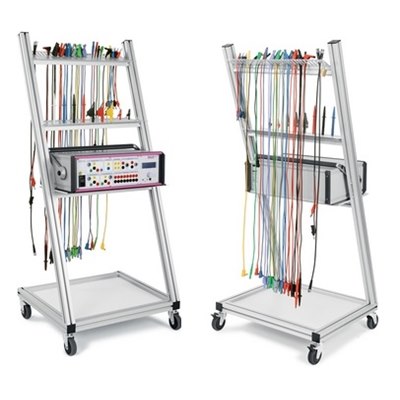

Schützinger MHW6836/BASIS PLUS Test Lead Storage

• Dimensions: W=606mm x H=1344mm x D=508mm

• base frame- / base trolley composed of frame profiles, base plate,

(max. load capacity: 30 kg), antistatic tires (2 lockable)

• 1 shelf, 520 x 165 mm, with cable slots, on intermediate

supports, for the storage of up to 120 measuring leads.
Max. load capacity: 10 kg

• 1 shelf, 520 x 169 mm, on intermediate supports, for the storage and

plug-in of test probes and other test accessories on Ø 4 mm lamella-basket plugs.
Max. load capacity: 10 kg

• 1 shelf, 520 x 300 mm, on intermediate supports, for the storage

of measurement instruments and -equipment.
Max. load capacity: 20 kg

Build Instructions can be downloaded below with Data Sheet
