Uni-T UDP3305S-E Programmable Linear 4 Channel DC Power Supply
by Uni-T
Roll over or select images to enlarge

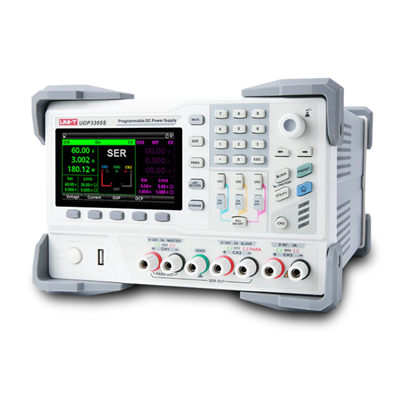

Uni-T UDP3305S-E Programmable Linear 4 Channel DC Power Supply
by Uni-T
UDP3305S-E 4Ch Advanced-Series Programmable Linear DC Power Supply
The Uni-Trend UDP3305s-e High-Performance programmable linear DC power supply is a diverse and cost-effective unit for teaching, scientific research, and measuring in the industrial field.
| Feature | Specification |
|---|---|
| Model Number | UDP3305S-E |
| Channels | 4Ch |
| Max V DC | 30VDC |
| Max A DC | 5A |
| Watts | 328W |
| Max V Resolution | 10mV |
| Max A Resolution | 1mA |
| Programmable | true |
| Warranty | 3 years |
| Shipping Dimmensions | L:18 in x W:14 in x H:12 in |
| Shipping Weight | 27 lb |
| Documents | English download guide, multi-language safety manual, calibration report (COC) |
| Included Accessories | Power cord, USB2.0 printing cable, Digital IO plug |
