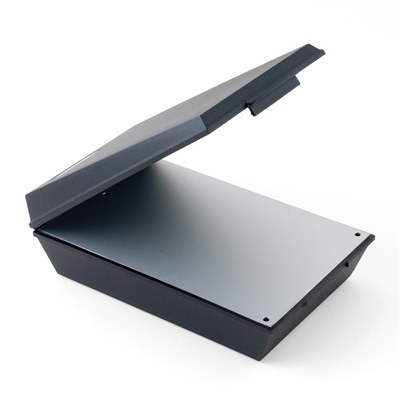

BCL FLB5 Hinged Flip Lid Instrument Case
FLB5 smart instrument case with hinged lid and integral catch moulded in black polypropylene with an overall textured finish and supplied with an anodised aluminium front panel and fixing screws.
A rectangular flat area is provided on the base at the hinged end of the box which can be used for test leads, connectors, output sockets etc.
The case also has a label attachment area on the outside.

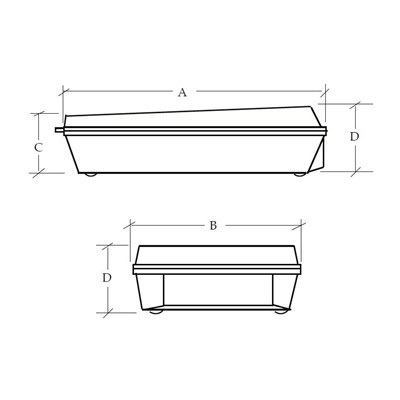

A (mm): 195
B (mm): 127
C (mm): 47
D (mm): 58
Nominal Wall Thickness: 2.5
Aluminium Plate Dimensions: 191
Available in black only
RoHS compliant
View product specifications
A rectangular flat area is provided on the base at the hinged end of the box which can be used for test leads, connectors, output sockets etc.
The case also has a label attachment area on the outside.
A (mm): 195
B (mm): 127
C (mm): 47
D (mm): 58
Nominal Wall Thickness: 2.5
Aluminium Plate Dimensions: 191
Available in black only
RoHS compliant
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Product Specifications
| Specification | 880-111 |
|---|---|
|
Type
|
FLB5 Black |
|
External Dims. LxWxH(max)
|
195x127x58 |
