CamdenBoss CIME/M Mini DIN Rail Mount Module

Brand
Scroll Down for Pricing Options

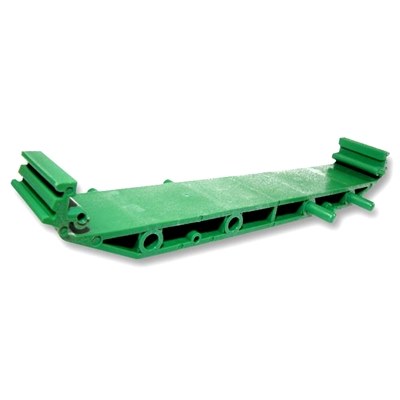

Base element CIME/M/BE1125SS
Roll over or select images to enlarge

CamdenBoss CIME/M Mini DIN Rail Mount Module

Brand
Scroll Down for Pricing Options
CamdenBoss CIME/M seriesminiature low profile DIN rail mounting modules
designed to accept 72mm wide x 1.5mm thick PCBs.
Modules of the required length are assembled by combining two side elements plus a
variable number of base elements to achieve the required PCB length (minimum 20mm).

Foot elements which will clip into any DIN rail can be fitted to the base modules as required.
For component clearance note that each side element has a 30mm long x 1.25mm deep support
on its inside wall, and there is a 1mm lip top and bottom on all elements. Solder side structures
(cropped pins etc.) should be 3mm clear of the top and bottom of the PCB to avoid the underside of the PCB slot.

Manufactured from flame retardant green nylon to UL94V-0.

RoHS compliant

View product specifications
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Add to basket

Product Specifications

Specification 881-121 881-122 881-123 881-124 881-125 881-126 881-127 881-128
Width
11.25mm 22.5mm 45mm 11.25mm 22.5mm 11.25mm 22.5mm -
Camden ref.
CIME/M/BE1125SS CIME/M/BE2250SS CIME/M/BE4500SS CIME/M/SE1125SS CIME/M/SE2250SS CIME/M/SEF1125SS CIME/M/SEF2250SS CIME/M/FE0000SS
Type
Base Element Base Element Base Element End Section End Section End Section with foot End Section with foot Foot Element
