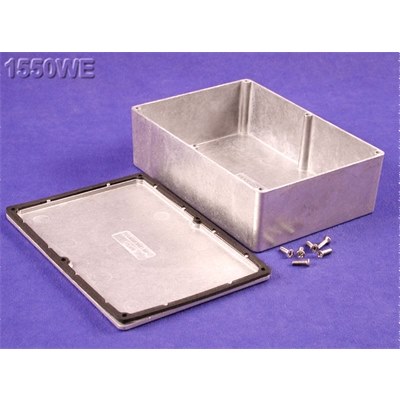

Hammond 1550W Watertight Diecast Enclosure
Hammond rugged, diecast aluminum alloy (tough yet easy to machine), electronic instrument enclosure.
Lap joint construction with a self-adhesive, EVA foam gasket (included) for the lid provides protection against access of dust and water.
Natural vibra finish for a smooth surface with no sharp edges.
Four M3.5 x 0.6 x 12 mm long stainless steel, Philips head, machine screws secure lid - into factory tapped holes.
No internal ribs for easy installation of connectors without interference or additional milling.
Low side wall draft angle (2 degrees or less) for easy P.C. board mounting.
Designed to meet IP 66 (with properly installed included gasket and lid screws torqued at 55 cN.m).
STANDARD LEAD TIME 5-7 DAYS
View product specifications
Lap joint construction with a self-adhesive, EVA foam gasket (included) for the lid provides protection against access of dust and water.
Natural vibra finish for a smooth surface with no sharp edges.
Four M3.5 x 0.6 x 12 mm long stainless steel, Philips head, machine screws secure lid - into factory tapped holes.
No internal ribs for easy installation of connectors without interference or additional milling.
Low side wall draft angle (2 degrees or less) for easy P.C. board mounting.
Designed to meet IP 66 (with properly installed included gasket and lid screws torqued at 55 cN.m).
STANDARD LEAD TIME 5-7 DAYS
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Product Specifications
| Specification | 880-332 | 880-333 | 880-334 | 880-335 | 880-336 | 880-337 | 880-338 |
|---|---|---|---|---|---|---|---|
|
External Dims. AxBxC (mm)
|
89x35x30mm | 115x64x30mm | 115x91x55mm | 115x65x55mm | 172x121x55mm | 80x55x25mm | 60x55x30mm |
|
Type
|
1550WA - Natural | 1550WB - Natural | 1550WC - Natural | 1550WD - Natural | 1550WE - Natural | 1550WP - Natural | 1550WQ - Natural |
