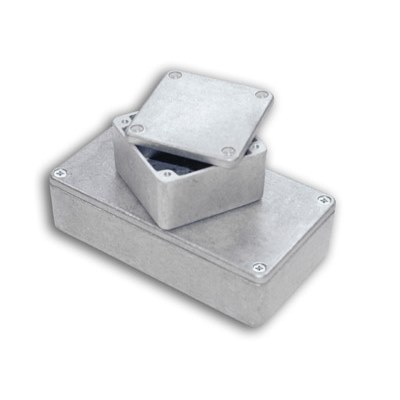

CamdenBoss 5000 Series Diecast Aluminium Boxes
5000 Series Multi-Purpose Diecast
Highly durable robust aluminium diecast boxes with RFI shielding properties.
SPECIFICATION
Materials: Lid & base diecast aluminium to ENAC 44200
Protection class: IP54 (IP65 optional)
Standard colours: Black RAL 9004, white RAL 9010, natural or hammertone Powder coating optional
Standard unit includes: Base, lid & x4 zinc plated M3 screw
Options: Wall mounting kit - IP65 gasket
Please click here for more information on customisation
View product specifications
Highly durable robust aluminium diecast boxes with RFI shielding properties.
- Diecast aluminium
- Lid mounted by four M3 machine screws
- Temperature resistant up to 260°C (without gasket)
- Highly Durable and shock resistant
- Vertical guides for PCB fixing
- Optional neoprene gasket for IP65 seal
SPECIFICATION
Materials: Lid & base diecast aluminium to ENAC 44200
Protection class: IP54 (IP65 optional)
Standard colours: Black RAL 9004, white RAL 9010, natural or hammertone Powder coating optional
Standard unit includes: Base, lid & x4 zinc plated M3 screw
Options: Wall mounting kit - IP65 gasket
Please click here for more information on customisation
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Product Specifications
| Specification | 880-360 | 880-361 | 880-365 | 880-366 | 880-370 | 880-371 | 880-375 | 880-376 | 880-380 | 880-381 | 880-385 | 880-386 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PCB Slots
|
4 | - | 18 | - | 24 | - | 25 | - | 34 | - | 44 | - |
|
External Dims. L x W x H
|
50x50x31 | - | 101x50x25 | - | 112x63x30 | - | 120x66x40 | - | 152x82x50 | - | 192x111x60 | - |
|
CamdenBoss Ref.
|
RTM5001/11-NAT | 5001 gasket | RTM5002/12-NAT | 5002 gasket | RTM5003/13-NAT | 5003 gasket | RTM5004/14-NAT | 5004 gasket | RTM5005/15-NAT | 5005 gasket | RTM5006/15-NAT | 5006 gasket |
