Roll over or select images to enlarge

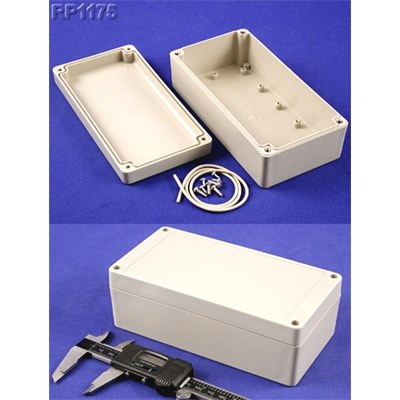

Ritec RP series Watertight ABS enclosures.
- Ritec RP series enclosures are sealed and designed to meet IP65 category.
- ABS- Polycarbonate material carries a UL flammability rating of UL94 HB.
- Color is off white with a light texture.
- Gasketed lid with two piece tongue & groove construction provides protection against access of oil, dust and water.
- Rubber gasket is included and must be field installed.
- Lid includes smooth recessed area for membrane, label or silkscreen.
- Lid is secured with self captivating - M3.5 stainless steel machine screws (included), threaded into integral stainless steel bushings. Stainless steel hardware to avoid corrosion caused by dissimilar metals.
- Lid screws are self captivating (lid holes threaded with first installation of lid screws).
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Product Specifications
| Specification | 880-981 | 880-982 | 880-987 | 880-983 | 880-984 | 880-985 | 880-986 | 880-988 | 880-989 | 880-991 |
|---|---|---|---|---|---|---|---|---|---|---|
|
External Dims. LxWxH (mm)
|
65x60x40mm | 85x80x55mm | 105x75x40mm | 125x85x55mm | 165x85x55mm | 165x85x85mm | 165x125x75mm | 186x146x75mm | 220x165x60mm | 220x165x85mm |
|
Type
|
RP1025 IP65 ABS enclosure | RP1065 IP65 ABS enclosure | RP1085 IP65 ABS enclosure | RP1135 IP65 ABS enclosure | RP1175 IP65 ABS enclosure | RP1185 IP65 ABS enclosure (deep lid) | RP1245 IP65 ABS enclosure | RP1285 IP65 ABS enclosure | RP1455 IP65 ABS enclosure | RP1465 IP65 ABS enclosure |
