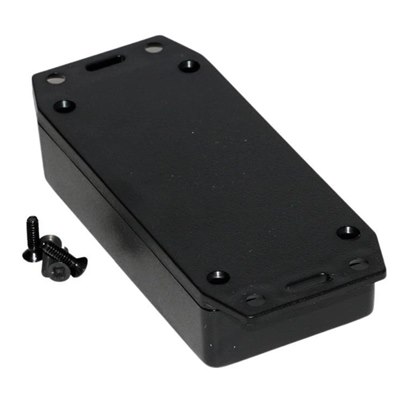

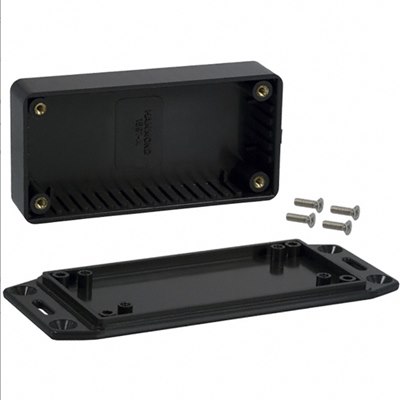

Hammond 1591 Flanged Lid Flame Retardant
- Hammond 1591 series enclosures.
- Flame retardant and with flanged lids.
- Ideally suited for vertical mounting of printed circuit boards (Integral card guides accept 1.5 mm (0.062") P.C. cards).
- Lid contains four molded-in PC board standoffs.
- Lap joint construction provides protection against access of dust and splashing water. Designed to meet IP54.
- Molded from easy to machine flame retardant ABS plastic (UL flammability rating of 94V-0).
- Lid secured with M3 x 10 mm Philips machine screws, threaded into integral brass bushings.
Perfect for applications with repetitive assembly and disassembly are required. - Black enclosures include black screws.
- Flanged lid is perfect for wall or shelf mounting and enclosure security.
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Product Specifications
| Specification | 881-430 | 881-432 | 881-434 | 881-436 | 881-438 | 881-440 | 881-442 |
|---|---|---|---|---|---|---|---|
|
Dimensions (LxWxH)
|
100 x 50 x 21mm | 112 x 62 x 27mm | 120 x 65 x 36mm | 150 x 80 x 46mm | 85 x 65 x 35mm | 85 x 56 x 21mm | 110 x 82 x 40mm |
|
Ref/Colour
|
1591AFLBK - black | 1591BFLBK - black | 1591CFLBK - black | 1591DFLBK - black | 1591LFLBK - black | 1591MFLBK - black | 1591SFLBK - black |
