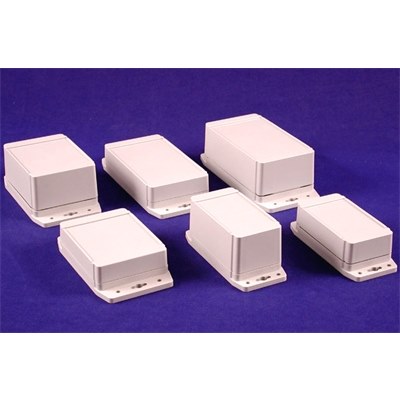

Hammond 1555 Flanged Series
- Hammond 1555 Flanged Series
- Designed for harsh industrial environments (security, wireless, controls etc)
- Ideally suited for mounting printed circuit boards, panels or DIN rail mounted components.
- Designed for wall mounting - interior is secure as lid screws are behind the lid.
- Satin texture finish with smooth recessed surface on lid for a membrane keypad or label
- General purpose ABS plastic (UL flammability rating UL94 HB). Not recommended for outdoor use.
- Colour light grey (RAL 7035) to help keep heat absorption down.
- Gasketed lid with two piece "tongue & groove" construction provides protection against access of oil, dust and water.
- Gasket is high temperature U.L. listed - silicone rubber material.
- Designed to meet IP 67 & NEMA 4, 4X, 12 & 13 ratings.
- Flanged lid secured with self captivating - M4 stainless steel machine screws (included), threaded into integral stainless steel bushings (for repetitive assembly & disassembly). All stainless steel hardware to avoid corrosion caused by dissimilar metals.
- Flanged lid screws are self captivating (lid holes are threaded with the first installation of lid screws).
- Internal features are maximized for mounting options:
- Internal DIN rail mounting tabs - molded into lid - (except smaller 1555CF22 & 1555CF42 enclosures)...
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Product Specifications
| Specification | 880-561 | 880-562 | 880-563 | 880-564 | 880-565 | 880-566 | 880-567 | 880-568 |
|---|---|---|---|---|---|---|---|---|
|
Dimensions (LxWxH)
|
120 x 66 x 42mm | 120 x 66 x 62mm | 120 x 91 x 37mm | 120 x 91 x 62mm | 180 x 120 x 37mm | 180 x 120 x 62mm | 159 x 91 x 37mm | 159 x 91 x 62mm |
|
Ref/Colour
|
1555CF22GY - Grey | 1555CF42GY - Grey | 1555FF17GY - Grey | 1555FF42GY - Grey | 1555HF17GY - Grey | 1555HF42GY - Grey | 1555JF17GY - Grey | 1555JF42GY - Grey |
