Hammond 1554 Series Watertight ABS Enclosures

Brand
Scroll Down for Pricing Options

Key Features:

  • Hammond 1554 Watertight Series
  • STANDARD LEAD TIME 5-7 DAYS


  • Ideally suited for mounting printed circuit boards or DIN rail mounted components (see photo features below for details).
  • ABS Versions are molded from general purpose material which carries a flammability rating of UL94-HB.  For indoor use.
  • Polycarbonate versions are UV stabilized for outdoor use.  Gray polycarb carries a UL94-5VA rating, while clear and smoked lids carry a UL94V-0 rating.
  • Polycarbonate versions are cUL and UL 508A listed (File # E65324).  ABS plastic versions are not UL listed.
  • Enclosure color is a light gray (RAL 7035).

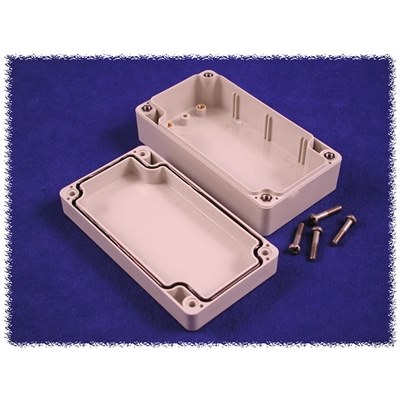

  • Gasketed lid with two piece “tongue & groove” construction provides protection against access of oil, dust and water.
  • Replaceable gasket is one piece made from high temperature, U.L. listed silicone.  Supplied loose inside the enclosure (not pre-installed).
  • Polycarb versions are designed to meet NEMA Type 4, 4X, 6, 6P, 12 & 13 ratings which meet and exceed IP ratings up to and including IP68.  (Except 1554/55 V size which is 4,4X only)
  • ABS Plastic versions are designed to meet IP66.
  • Lid is secured with included M4 stainless steel machine screws which are threaded into corrosion resistant bushings for repetitive assembly & disassembly. All hardware is designed to avoid corrosion caused by harsh environments over time.
  • Lid screws are self captivating (lid holes are threaded with the first installation of lid screws).
  • Internal features are maximized for mounting options and vary with size:
    • Internal DIN rail mounting tabs molded into most models, except sizes “C” and “D”.
    • Threaded (M3) integral brass inserts and/or standoffs (#6 self tapping screws) for P.C. board or inner panel mounting in all but the smallest size (“B”).
    • Vertical P.C. card guides (for 1.5 mm thick P.C. boards) are molded in all but the smallest size (“B”).




Polycarbonate versions available with gray, clear, or smoked lid.  ABS version available only in gray.
View product specifications
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Description
Add to basket
Request Lead Time
Price Each Exc VAT (Inc VAT)
Stock Qty: 0
Price Each Exc VAT (Inc VAT)
Stock Qty: 36
Price Each Exc VAT (Inc VAT)
Stock Qty: 21
Price Each Exc VAT (Inc VAT)
Stock Qty: 1
Price Each Exc VAT (Inc VAT)
Stock Qty: 5
Price Each Exc VAT (Inc VAT)
Stock Qty: 1
Price Each Exc VAT (Inc VAT)
Stock Qty: 1
Price Each Exc VAT (Inc VAT)
Stock Qty: 0

Product Specifications

Specification 880-950 880-951 880-952 880-953 880-954 880-955 880-956 881-060
Dimensions (LxWxH)
65x65x40 120x65x40 90x90x60 120x90x60 160x90x60 120x120x80 160x160x90 180 x 120 x 60
Ref/Colour
1554BGY Watertight ABS Enc. Light Grey 1554CGY Watertight ABS Enc. Light Grey 1554EGY Watertight ABS Enc. Light Grey 1554FGY Watertight ABS Enc. Light Grey 1554JGY Watertight ABS Enc. Light Grey 1554PGY Watertight ABS Enc. Light Grey 1554SGY Watertight ABS Enc. Light Grey 1554H2GY ABS Enc. Light Grey
