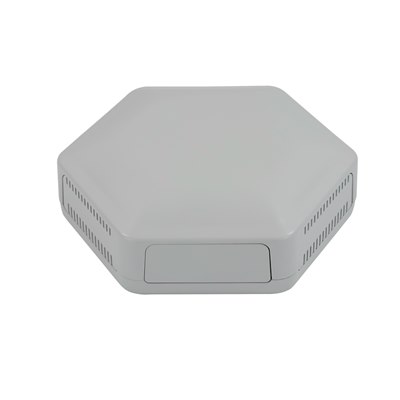

CBHEX1 Hex-Box IoT Grey Enclosures

These UK manufactured Hex-Box enclosures are made from 100% recyclable material.

• Panels are easily customisable, the self retaining removable end panels allow for cable entries from all sides.
• A variety of solid or vented panel options.
• With no brass inserts included in the enclosure itself, it is 100% recyclable.
• Moulded from ABS UL94-V0.
• With a smooth bevelled lid it is suitable for a 2.5" screen and is perfect for digital printing.
• Available in black, white and grey.
• Offers connector access and air flow benefits.
• Ideal for industrial IoT settings.

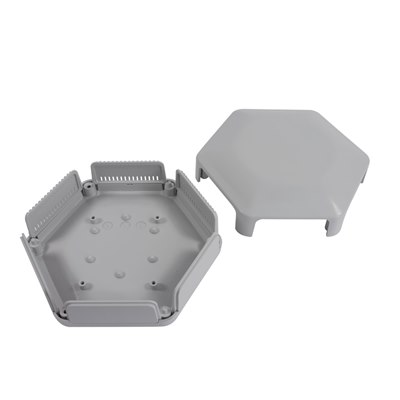

• PCB mounting in the top and base.
• Panels are easily customisable.
• Use the Hex-Box on a desktop by adding the rubber feet (

  sold separately - 881-095

  )
• To make your Hex-Box into a wall mountable enclosure use the Circular wall mount bracket ( sold separately)

Raspberry Pi:

• PCB mounting in the top and base. Six bosses in the top, four in the base with Raspberry Pi mountable footprint.
• Two customised panels to allow for raspberry Pi connections to be made.
• Includes 1 x enclosure, 2 x customised solid panels to accommodate Raspberry Pi, 2 x solid panels and 3 vented panels
• Raspberry Pi board not included
