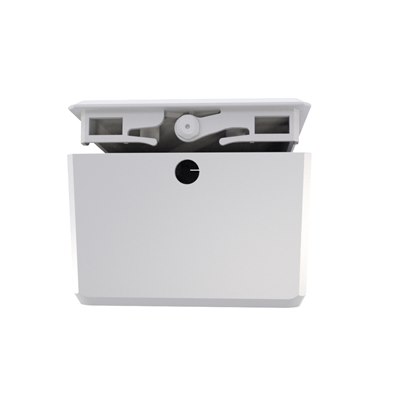

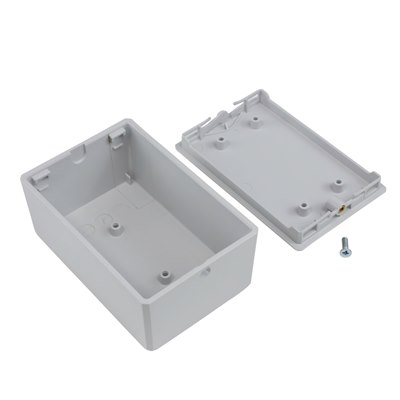

CBEAC Easy Assembly Electronic Enclosures

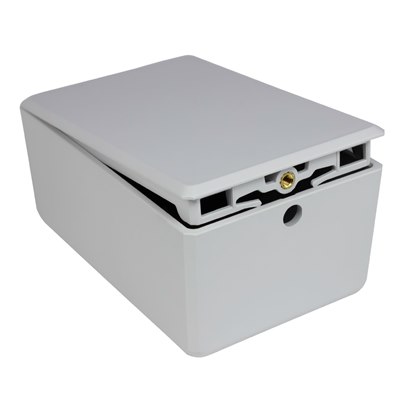

This UK manufactured universal enclosure has been designed to provide increased functionality and flexibility. With a dual action lid that is held in place with either a push button clip or a single screw.

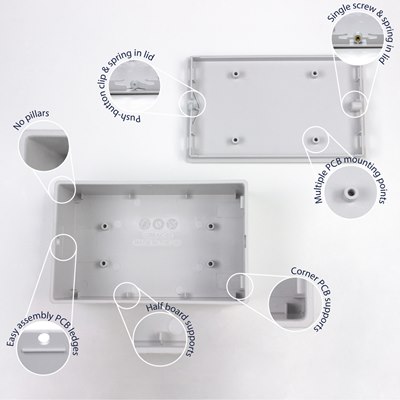

- Key features include:
- A spring feature in lid to hold the PCB securely without the need for screws.
- No corner pillars so a maximised PCB footprint to provide edge to edge capability.
- Sizes 3 and 4 have an additional four half board supports that can be removed to make way for solder points on the bottom of the PCB.
- Alongside the spring feature in the lid the ledge holds the PCB in place without the need for screws.
- Multiple PCB mounting points in the base and lid.
- Smooth finish.
- 2.5 mm wall thickness
- Sizes 3 and 4 fit raspberry Pi 3 and 4 and Size 1 fits raspberry Pi zero.
- Moulded from ABS UL94-V0 material in a variety of colours.
- With optional DIN Rail / wall mount brackets available.
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Details
Order Code
Description
Price Each Exc VAT (Inc VAT)
1+
25+
100+
Add to basket
Order Code:
Description:
CBEAC-01-GY Grey Enclosure 90x60x40
CBEAC-01-GY Grey Enclosure 90x60x40
£2.670
(£3.204)
£2.370
(£2.844)
£2.150
(£2.580)
Price Each Exc VAT (Inc VAT)
1+ @ £2.670
(£3.204)
25+ @ £2.370
(£2.844)
100+ @ £2.150
(£2.580)
hide price breaks
view price breaks
Order Code:
Description:
CBEAC-01-BK Black Enclosure 90x60x40
CBEAC-01-BK Black Enclosure 90x60x40
£2.670
(£3.204)
£2.370
(£2.844)
£2.150
(£2.580)
Price Each Exc VAT (Inc VAT)
1+ @ £2.670
(£3.204)
25+ @ £2.370
(£2.844)
100+ @ £2.150
(£2.580)
hide price breaks
view price breaks
Order Code:
Description:
CBEAC-01-WH White Enclosure 90x60x40
CBEAC-01-WH White Enclosure 90x60x40
£2.670
(£3.204)
£2.370
(£2.844)
£2.150
(£2.580)
Price Each Exc VAT (Inc VAT)
1+ @ £2.670
(£3.204)
25+ @ £2.370
(£2.844)
100+ @ £2.150
(£2.580)
hide price breaks
view price breaks
Order Code:
Description:
CBEAC-02-GY Grey Enclosure 110x70x45
CBEAC-02-GY Grey Enclosure 110x70x45
£3.010
(£3.612)
£2.680
(£3.216)
£2.430
(£2.916)
Price Each Exc VAT (Inc VAT)
1+ @ £3.010
(£3.612)
25+ @ £2.680
(£3.216)
100+ @ £2.430
(£2.916)
hide price breaks
view price breaks
Order Code:
Description:
CBEAC-02-BK Black Enclosure 110x70x45
CBEAC-02-BK Black Enclosure 110x70x45
£3.010
(£3.612)
£2.680
(£3.216)
£2.430
(£2.916)
Price Each Exc VAT (Inc VAT)
1+ @ £3.010
(£3.612)
25+ @ £2.680
(£3.216)
100+ @ £2.430
(£2.916)
hide price breaks
view price breaks
Order Code:
Description:
CBEAC-02-WH White Enclosure 110x70x45
CBEAC-02-WH White Enclosure 110x70x45
£3.010
(£3.612)
£2.680
(£3.216)
£2.430
(£2.916)
Price Each Exc VAT (Inc VAT)
1+ @ £3.010
(£3.612)
25+ @ £2.680
(£3.216)
100+ @ £2.430
(£2.916)
hide price breaks
view price breaks
Order Code:
Description:
CBEAC-03-GY Grey Enclosure 130x80x45
CBEAC-03-GY Grey Enclosure 130x80x45
£3.470
(£4.164)
£3.090
(£3.708)
£2.800
(£3.360)
Price Each Exc VAT (Inc VAT)
1+ @ £3.470
(£4.164)
25+ @ £3.090
(£3.708)
100+ @ £2.800
(£3.360)
hide price breaks
view price breaks
Order Code:
Description:
CBEAC-03-BK Black Enclosure 130x80x45
CBEAC-03-BK Black Enclosure 130x80x45
£3.470
(£4.164)
£3.090
(£3.708)
£2.800
(£3.360)
Price Each Exc VAT (Inc VAT)
1+ @ £3.470
(£4.164)
25+ @ £3.090
(£3.708)
100+ @ £2.800
(£3.360)
hide price breaks
view price breaks
Order Code:
Description:
CBEAC-03-WH White Enclosure 130x80x45
CBEAC-03-WH White Enclosure 130x80x45
£3.470
(£4.164)
£3.090
(£3.708)
£2.800
(£3.360)
Price Each Exc VAT (Inc VAT)
1+ @ £3.470
(£4.164)
25+ @ £3.090
(£3.708)
100+ @ £2.800
(£3.360)
hide price breaks
view price breaks
Order Code:
Description:
CBEAC-04-GY Grey Enclosure 150x90x50
CBEAC-04-GY Grey Enclosure 150x90x50
£4.530
(£5.436)
£4.020
(£4.824)
£3.650
(£4.380)
Price Each Exc VAT (Inc VAT)
1+ @ £4.530
(£5.436)
25+ @ £4.020
(£4.824)
100+ @ £3.650
(£4.380)
hide price breaks
view price breaks
Order Code:
Description:
CBEAC-04-BK Black Enclosure 150x90x50
CBEAC-04-BK Black Enclosure 150x90x50
£4.530
(£5.436)
£4.020
(£4.824)
£3.650
(£4.380)
Price Each Exc VAT (Inc VAT)
1+ @ £4.530
(£5.436)
25+ @ £4.020
(£4.824)
100+ @ £3.650
(£4.380)
hide price breaks
view price breaks
Product Specifications
| Specification | 881-050 | 881-051 | 881-052 | 881-053 | 881-054 | 881-055 | 881-056 | 881-057 | 881-058 | 881-059 | 881-062 | 881-063 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Colour
|
Grey | Black | White | Grey | Black | White | Grey | Black | White | Grey | Black | White |
|
Dimensions:
|
L: 90 x W: 60 x H: 40 mm | L: 90 x W: 60 x H: 40 mm | L: 90 x W: 60 x H: 40 mm | L: 110 x W: 70 x H: 45 mm | L: 110 x W: 70 x H: 45 mm | L: 110 x W: 70 x H: 45 mm | L: 130 x W: 80 x H: 45 mm | L: 130 x W: 80 x H: 45 mm | L: 130 x W: 80 x H: 45 mm | L: 150 x W: 90 x H: 50 mm | L: 150 x W: 90 x H: 50 mm | L: 150 x W: 90 x H: 50 mm |
|
Manufacturer Ref.
|
CBEAC-01-GY | CBEAC-01-BK | CBEAC-01-WH | CBEAC-02-GY | CBEAC-02-BK | CBEAC-02-WH | CBEAC-03-GY | CBEAC-03-BK | CBEAC-03-WH | CBEAC-04-GY | CBEAC-04-BK | CBEAC-04-WH |
