CBEAC Easy Assembly Electronic Enclosures

Brand
Scroll Down for Pricing Options
Camden Boss CBEAC-01-GY Grey Enclosure 90x60x40
Roll over or select images to enlarge

CBEAC Easy Assembly Electronic Enclosures

Brand
Scroll Down for Pricing Options

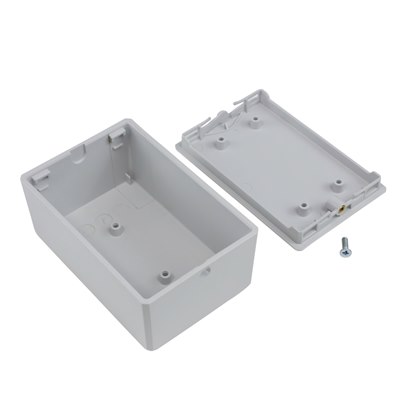

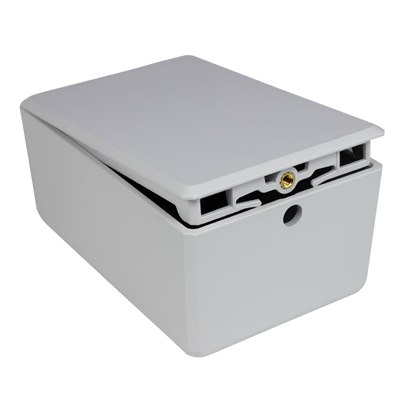

Moulded in grey UL94-V0 ABS and manufactured in the UK, the Easy Assembly Electronics Enclosure is a general purpose enclosure providing fast assembly using the dual action lid and drop fit PCB position. Edge to edge PCB maximises the internal space.

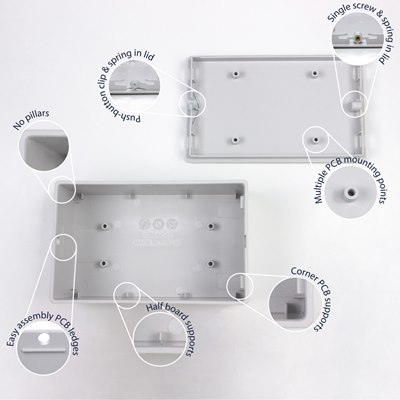

  • Key features include:
    • Unique dual action lid is held in place by either a push-button clip or a single screw
    • No corner pillars, providing maximised PCB footprint with edge-to-edge capability
    • Multiple PCB mounting points in base and lid, along with PCB edge corner supports in the base
    • Unique spring feature in lid holds your PCB securely in place without the need for screws, greatly improving assembly time
    • In conjunction with the spring feature in the lid, the 'easy assembly' ledge holds the PCB in place without the need for screws, for quick and easy assembly
    • Premium quality universal enclosure with cost saving assembly design features
    • Robust 2.5mm thick walls moulded in UL94-V0 ABS material with smooth finish to aid customisation and modification
    • Sizes 3 and 4 have an additional four half board supports that can be removed to make way for solder points on the bottom of the PCB.
    • Multiple PCB mounting points in the base and lid.
    • Smooth finish.
    • 2.5 mm wall thickness
    • Sizes 3 and 4 fit raspberry Pi 3 and 4 and Size fits raspberry Pi zero.
    • Moulded from ABS UL94-V0 material in a variety of colours.
    • Designed and manufactured in the UK
    • DIN rail and wall mount accessories available
    • Available in black, white and grey
View product specifications
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Description
Add to basket
Price Each Exc VAT (Inc VAT)
Price Each Exc VAT (Inc VAT)
Price Each Exc VAT (Inc VAT)
Price Each Exc VAT (Inc VAT)
Price Each Exc VAT (Inc VAT)
Price Each Exc VAT (Inc VAT)
Price Each Exc VAT (Inc VAT)
Price Each Exc VAT (Inc VAT)
Price Each Exc VAT (Inc VAT)
Price Each Exc VAT (Inc VAT)
Price Each Exc VAT (Inc VAT)
Price Each Exc VAT (Inc VAT)

Product Specifications

Specification 881-050 881-051 881-052 881-053 881-054 881-055 881-056 881-057 881-058 881-059 881-062 881-063
Colour
Grey Black White Grey Black White Grey Black White Grey Black White
Manufacturer Ref.
CBEAC-01-GY CBEAC-01-BK CBEAC-01-WH CBEAC-02-GY CBEAC-02-BK CBEAC-02-WH CBEAC-03-GY CBEAC-03-BK CBEAC-03-WH CBEAC-04-GY CBEAC-04-BK CBEAC-04-WH
Dimensions:
L: 90 x W: 60 x H: 40 mm L: 90 x W: 60 x H: 40 mm L: 90 x W: 60 x H: 40 mm L: 110 x W: 70 x H: 45 mm L: 110 x W: 70 x H: 45 mm L: 110 x W: 70 x H: 45 mm L: 130 x W: 80 x H: 45 mm L: 130 x W: 80 x H: 45 mm L: 130 x W: 80 x H: 45 mm L: 150 x W: 90 x H: 50 mm L: 150 x W: 90 x H: 50 mm L: 150 x W: 90 x H: 50 mm
