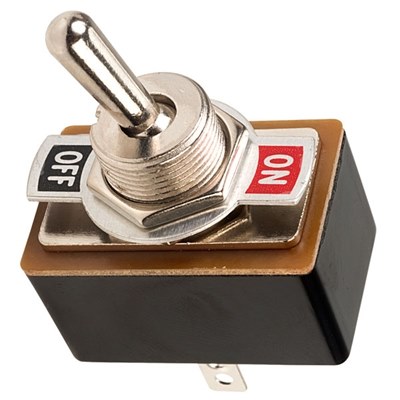

SCI R13-2-05 SPST Standard Toggle Switch
by JPR
Standard size SPST toggle switches. Panel mounting with solder tag terminals.
Supplied with On/Off indicator plate.
Metal lever and bushing are nickel plated brass. Phenolic base.
These switches are not recommended for industrial use.
Panel cutout 12mm
Rated 1.5A 250VAC
Contact resistance 50mΩ max.
Dielectric strength 1000VAC/1min.
SPST: L:25mm H:14mm W:14mm
RoHS compliant
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Product Specifications
| Specification | 800-021 |
|---|---|
|
Description
|
SPST Standard Toggle Switch |
