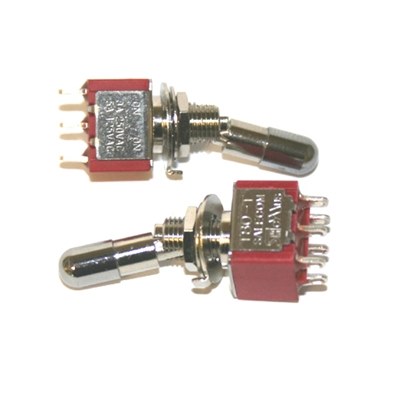

Salecom T80-T Series Locking Lever Toggle Switch
Spring mechanism locks lever in position, preventing accidental switching.
View product specifications
| Rating: | 5A 120VAC/28VDC 3A 250VAC |
| Dielectric Strength: | 1500V RMS |
| Temperature range: | -30° to +85°C. |
| Insulation resistance: | >1000MΩ |
| Contact resistance: | <10mΩ maximum initial |
| Electrical life: | 50,000 make/break cycles at full load |
| Case material: | Diallyl phthalate (DAP) |
| Contact material: | Coin silver, silver plated |
| Panel cutout 6.35mm |
| UL approved. |
Salecom T80-T series.
RoHS compliant
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Product Specifications
| Specification | 800-229 | 800-231 |
|---|---|---|
|
Manufacturer Ref.
|
T8013-LKB-EH | T8011-LKB-EH |
|
Description
|
SPDT on-on | DPDT on-on |
