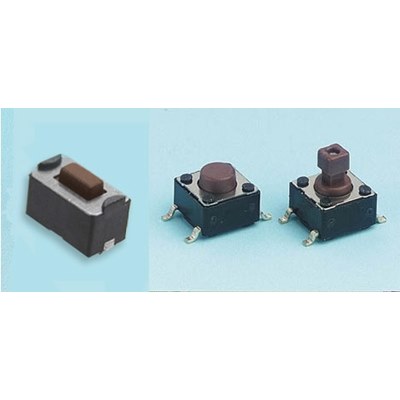

Diptronics DTSM Series SMD TACT Switches
by Diptronics
Miniature SMD switches with positive tactile action.
Single pole, normally open contact. Available in standard 6 x 6, or 12 x 12 mm sizes with
various flat or projected stem profiles, round (R), rectangular (RC) and square (SQ)
Supplied in tubes, taped and reeled available on request.
Spacing 6x6mm:12.0mm 12x12mm:16.0mm
| Contact rating: | 50mA, 12VDC. | Contact resistance: | <100mW |
| Operating life: | >500,000 cycles. | Operating force: | 160g ± 50g |
Other operating forces available to order.
Diptronics types:
DTSM-3 (6x3.5mm)
DTSM-6 (6mm)
DTSM-2 (12mm)
RoHS compliant
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Product Specifications
| Specification | 800-472 | 800-473 | 800-475 | 800-476 | 800-477 | 800-479 | 800-478 | 800-480 |
|---|---|---|---|---|---|---|---|---|
|
Shape
|
RC | RC | R | R | SQ | R | R | SQ |
|
Total Height
|
4.30 | 5.00 | 4.30 | 5.00 | 7.30 | 13.0 | 4.30 | 7.30 |
|
Diptronics ref.
|
DTSM31N | DTSM32N | DTSM61N | DTSM62N | DTSM644N | DTSM-66R-B | DTSM21N | DTSM24N |
|
Description
|
6x3.5 SMD switch | 6x3.5 SMD switch | 6x6 SMD switch | 6x6 SMD switch | 6x6 SMD switch | 6x6 SMD switch | 12x12 SMD switch | 12x12 SMD switch |
