Salecom TS40-S Series Ultraminiature Slide Switch
by Salecom

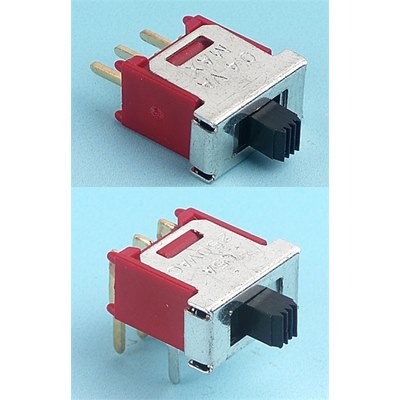

A range of super compact high quality slide switches measuring only 10mm x 5mm. Available in vertical or 90° right angle PCB mounting versions, contacts are SPDT on-on or centre-off, terminal pins on a 2.54mm pitch. Suitable for low level switching applications, contacts and terminals are gold plated. Terminals are epoxy sealed.
| Rating: | 0.4VA @ 20VAC/DC max. |
| Contact resistance: | <20mW max. initial. |
| Operating life: | >30,000 make/break cycles |
| Dielectric strength: | 1500V RMS |
| Case material: | Stainless steel & DAP. |
| Temperature range: | -30°C to +85°C |
RoHS compliant
Salecom TS40-S series.
UL approved
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Product Specifications
| Specification | 800-625 | 800-627 | 800-629 | 800-630 |
|---|---|---|---|---|
|
Manufacturer Ref.
|
TS-4S-RE-H | TS-4AS-RE-H | TS-6S-RE-H | TS-6AS-RE-H |
|
Description
|
SPDT Vertical on-on. | SPDT Vertical on-off-on | SPDT 90° on-on | SPDT 90° on-off-on |
