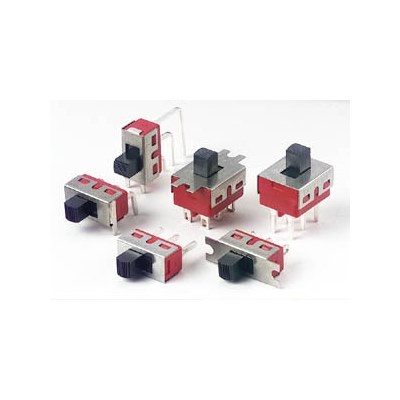

Salecom T80S Series Slide Switch
The Salecom T80S Series represents a premium range of superior-quality slide switches engineered specifically for demanding industrial, medical, and professional electronics applications. Built to withstand heavy use, these switches offer versatile termination options, including solder tag and PCB terminal configurations, allowing for seamless integration into either chassis-mount panels or direct circuit board layouts.
Constructed with a rugged Diallyl Phthalate (DAP) base and a stainless steel housing framework, the T80S series delivers exceptional electrical insulation and mechanical durability. These high-capacity switches are perfectly suited for power interface switching, control panels, test instrumentation, and industrial machinery where operational reliability is paramount.
As the only official UK agent for Salecom, JPR Electronics provides direct access to factory-fresh stock, competitive bulk pricing tiers, and short 6-7 week lead times on custom or high-volume orders.
| Rating: | 6A 120V AC/28V DC 3A 250V AC |
| Resistive load | |
| Contact resistance: | <10mΩ initial |
| Operating life: | > 30,000 cycles |
| Insulation resistance: | > 1000MΩ |
| Dielectric strength: | 1000V RMS |
| Case Material: | DAP & Stainless Steel |
| Contact Material: | Silver plated brass |
| Temperature range: | -30°C to +85°C |
RoHS compliant
UL & TUV Approved
Product Specifications
| Specification | 800-605 | 800-606 | 800-610 | 800-612 | 800-616 | 800-617 |
|---|---|---|---|---|---|---|
|
Manufacturer Ref.
|
TS13A1-2-BQH | TS13A1-2-CQH | TS13P-A1-2QH | TS13L-A1-2CQH | TS11A1-2-BQH | TS11A1-2-CQH |
|
Description
|
SPDT solder tag | SPDT straight PCB terminals | SPDT horizontal PCB mount | SPDT Vertical PCB mount | DPDT solder tag | DPDT straight PCB terminals |
