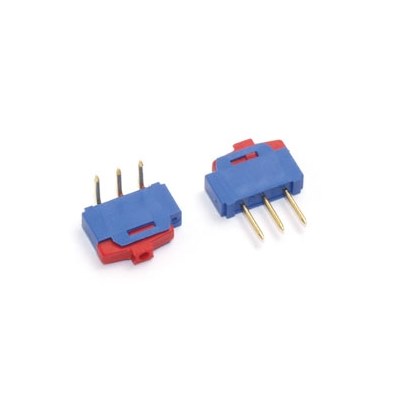

APEM NK236 Microminiature slide switches
by Apem
Very low profile (2.5mm) SPDT slide switches for low level switching applications.
Flux sealed and wave solderable. Available with straight or right angle PCB terminals.
| Rating: | 0.5A 12V max. |
| Minimum load: | 1mA @ 10mV |
| Contact resistance: | <20MW initial. |
| Capacitance: | <1.5pF |
| Operating life: | >2,000 cycles |
| Dielectric strength: | 250V RMS between terminals |
| Case material: | PA6/6 glass filled UL94-VO |
| Contact material: | Gold over nickel |
| Temperature range: | -40°C to +85°C |
Apem NK series
RoHS compliant
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Product Specifications
| Specification | 800-640 | 800-642 |
|---|---|---|
|
Description
|
SPDT straight terminals. Apem NK236H | SPDT 90° terminals. Apem NK236WH |
