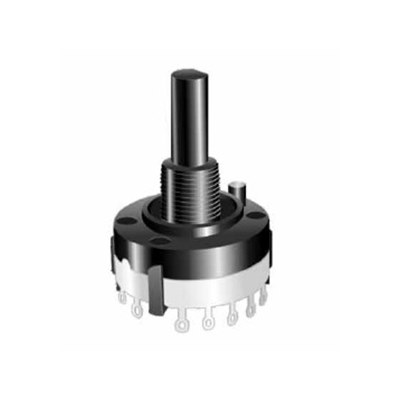

Taiwan Alpha SR2611F Rotary Switch
by Taiwan Alpha
Rotary wafer switches moulded in glass-filled nylon - UL94V-O.
Contacts are break before make (non-shorting).
| Contact rating: | 150mA 250V AC |
| Max. working voltage: | 300V AC/DC resistive. |
| Contact resistance: | <20mW |
| Operating life: | >10,000 cycles. |
| Body diameter: | 26mm max. |
| Spindle : | 6.35mm dia. x 29mm long, with flat. |
| Mounting bush: | 9.8mm dia. |
| Terminal options: | Solder Terminal |
Taiwan Alpha SR2611F Series.
RoHS compliant
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Product Specifications
| Specification | 800-940 | 800-941 | 800-942 | 800-943 |
|---|---|---|---|---|
|
Description
|
Solder tag 1pole 12 way Break before Make. | Solder tag 2 pole 6 way Break before Make. | Solder tag 3 pole 4 way Break before Make. | Solder tag 4 pole 3 way Break before Make. |
