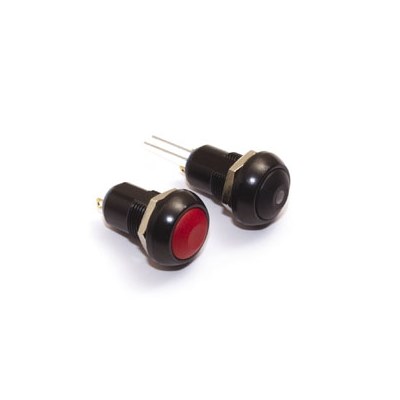

Apem IP Series IP67 Latching Push Switch
by Apem
Rugged compact SPNO push button latching action switches designed for use in harsh environments.
The bushing and bezel assembly is made from a single piece of diecast zinc.
An elastomer membrane located beneath the plunger ensures internal sealing and provides tactile feedback.
Panel cutout 13.6mm. Sealed to IP67 against immersion and housed in a thermoplastic casing to UL94V-0.
Available in a range of button colours, or illuminated black button version with red, yellow or green LED.
Apem IPR series.
RoHS compliant
| Contact rating (resistive): | 0.1A 24VDC |
| 2A 125VAC | |
| Contact material: | Silver, gold-plated |
| Contact resistance: | 50mW max. initial |
| Insulation resistance: | 1GW min. @ 500VDC |
| Dielectric strength: | 1000VAC rms |
| Electrical life: | >200,000 cycles @ 0.1A 24VDC |
| >10,000 cycles @ 2A 125VAC | |
| Operating temp: | -40°C to +85°C |
| Environmental: | IP67 |
| LED intensity: | 100mcd @ If 20mA |
| Panel thickness: | 1.5 to 5.0mm |
| Panel cutout: | 13.6mm |
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Product Specifications
| Specification | 800-707 | 800-708 | 800-709 | 800-713 | 800-714 | 800-715 |
|---|---|---|---|---|---|---|
|
Description
|
Black latching - IPR1SAD2 | Red latching - IPR1SAD6 | Green latching - IPR1SAD3 | Black latching + red LED - IPR1SAD2LOS | Black latching + yellow LED - IPR1SAD2LOY | Black latching + green LED - IPR1SAD2LOG |
