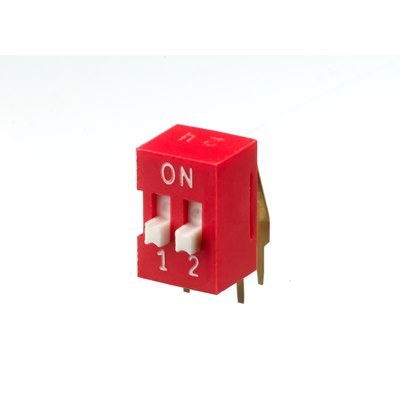

NDA Series Right Angle DIL Switches
by Diptronics
- Operating Temperature : -20°C to +70°C
- Terminal : Gold Plated
- Moving Contact : Gold Plated
- Max Current / Voltage Rating:
- Switching: 25mA 24VDC
- Contact Rating: 100mA 50VDC
- Initial Contact Resistance: 50m
Ω min. at 500VDC
Insulation Resistance : 100M Ω min. at 500VDC- Electrical Life : 2,000 cycles
- Self-cleaning wiping contacts
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Product Specifications
| Specification | 800-687 | 800-688 | 800-689 | 800-690 |
|---|---|---|---|---|
|
Length
|
6.4mm | 11.52mm | 16.60mm | 21.68mm |
|
Description
|
NDA-02-V 2 Way DIL Switch | NDA-04-V 4 Way DIL Switch | NDA-06-V 6 Way DIL Switch | NDA-08-V 8 Way DIL Switch |
