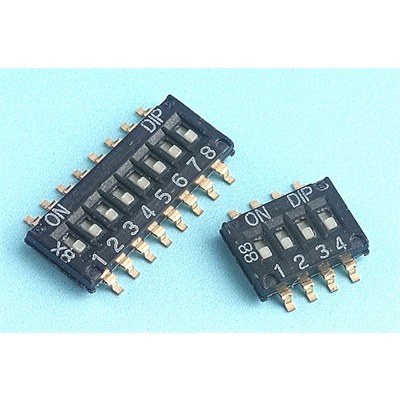

Diptronics NHDS Half-pitch SMD DIL Switches
by Diptronics
1.27mm pitch micro-miniature SPST DIL switches. Gold plated contacts and terminals. Flame retardant moulding to UL94V-0.
RoHS compliant
Supplied in tubes, or taped & reeled to special order.
| Contact rating: | 100mA 50VDC at setting |
| 25mA 24VDC switching | |
| Operating force: | 500gf max. |
| Operating life: | >1000 operations per pole |
| Contact resistance: | <100mΩ initial |
| Capacitance: | 5pF max. |
Diptronics NHDS series
RoHS compliant
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Product Specifications
| Specification | 800-662 | 800-664 | 800-666 | 800-668 |
|---|---|---|---|---|
|
Description
|
2 way half-pitch NHDS02T | 4 way half-pitch NHDS04T | 6 way half-pitch NHDS06T | 8 way half-pitch NHDS08T |
|
Length
|
3.77mm | 6.31mm | 8.85mm | 11.39mm |
