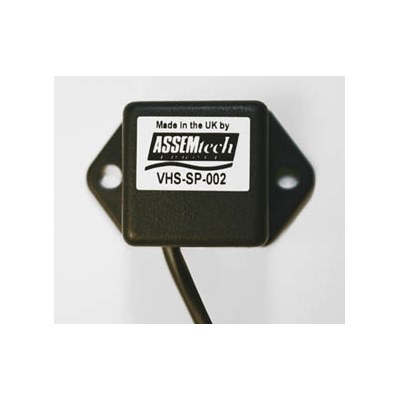

Comus VHS-SP-002 Adjustable Vibration Sensor
by Comus
Vibration sensor module, with adjustable de-bounce and Logic & MOSFET outputs.
The sensors employs a simple resistor/capacitor charging circuit that enable the sensitivity to be set via integral potentiometer.
TTL logic and open drain N channel MOSFET outputs incorporated. Fitted with 500mm flying lead.
Comus VHS-SP-002
| Supply voltage: | 9-24Vdc |
| Supply current: | 25mA |
| Logic output current: | 20mA max. |
| MOSFET output: | N Channel, open drain |
| Max. switching voltage: | 30Vdc |
| Max. switching current: | 1.8A |
| Operating temp. | 0°-70°C |
| Body dimensions: | 27x27x20.1mm |
| Fixing centres: | 35mm |
| Wire leads: | 7/0.2mm 4 core. 500mm L |
RoHS compliant
** Please contact Sales for Lead Time **
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Product Specifications
| Specification | 800-589 |
|---|---|
|
Description
|
Adj. vibration sensor |
|
Type
|
VHS-SP-002 |
