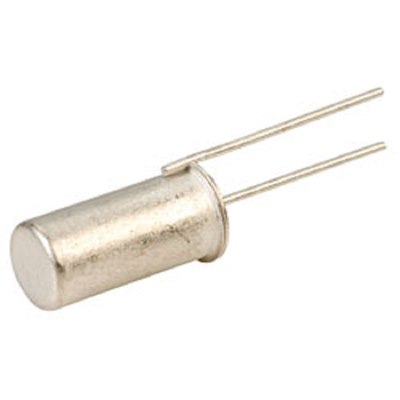

Comus CW1300-1 Non-Mercury Tilt Switch
by Comus
Hermetically sealed tilt switch, utilising non-toxic materials, designed to meet a wide range of low level switching applications, including automotive sensing, consumer products, toys, games etc.
The switch is designed for horizontal mounting, with make to break changeover typically within 10° either side of horizontal.
| Contact form: | Normally open |
| Contact rating: | 150mA @ 12Vdc, 10mA @ 120Vac. |
| Contact resistance: | 0.8W max @ 45° tilt |
| Differential angle: | 15° max |
| Body dimensions: | L: 10.2mm. Dia: 4.7mm |
| Lead dimensions: | L: 12.2mm. Dia: 0.51mm. |
| Lead pitch: | 2.9mm |
Comus type CW1300-1
RoHS compliant
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Product Specifications
| Specification | 800-527 |
|---|---|
|
Description
|
Non-Mercury Tilt Switch |
|
Type
|
CW1300-1 |
