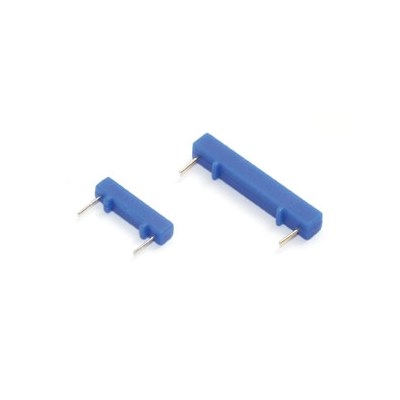

Comus PPS Series Encapsulated Reed Switch
by Comus
Reed switches enclosed in a strong ABS housing for PCB mounting.
| Order Code: | 800-570 | 800-571 |
| Comus part no: | PPS24 | PPS470 |
| Contact form: | SPNO | SPNO |
| Switching capacity: | 1.0VA | 10VA |
| Max. switching voltage: | 24VAC | 470VAC |
| Max. switching current: | 0.1A | 0.5A |
| Contact resistance: | <200mW | <150mW |
| Dimensions mm: | 15.0x4.2x3.2 | 25.0x3.7x3.7 |
| PCB pin spacing: | 12mm | 22mm |
RoHS compliant
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Product Specifications
| Specification | 800-570 | 800-571 |
|---|---|---|
|
Manuf. list
|
PPS24 | PPS470 |
|
Type
|
SPNO | SPNO |
