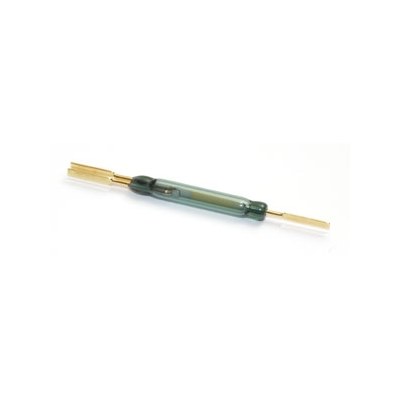

Comus 2502-1917-060 DPCO Reed Switch
by Comus
Compact magnetic reed switch. Contact form DPCO
| Order Code: | 800-552 |
| Comus part no: | 2502-1917-060 |
| Contact form: | DPCO |
| Contact material: | Rhodium |
| Switching capacity: | 60VA |
| Max. switching voltage: | 400VAC |
| Max. switching current: | 1A |
| Contact resistance: | <100mW |
| Contact capacitance: | 1.0pF |
| Operate/Release time: | 4ms/0.15ms |
| Pull-in sensitivity: | 50-80AT |
| Dimensions: Body: | 36 x 5.6mm |
| O/A length: | 70mm |
RoHS compliant
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Product Specifications
| Specification | 800-552 |
|---|---|
|
Manuf. list
|
2502-1917-060 |
|
Type
|
DPCO |
