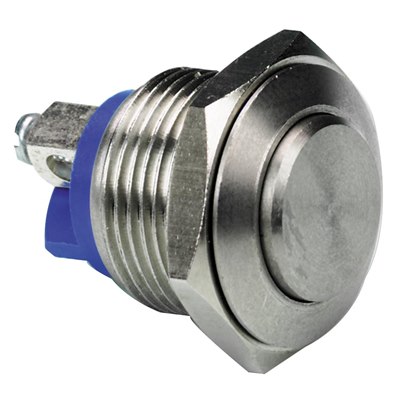

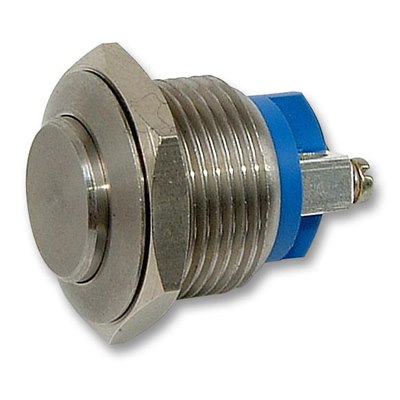

APEM Vandal Resistant 16mm switch IP65 SPNO
by Apem
Robust stainless steel vandal resistant switches with SPNO momentary action.
Sealed to IP65. Available with either flat or curved (dome) actuators.
Through panel mounting. Connection via screw terminals.
| Rating: | 200mA resistive @ 48VDC |
| Contact resistance: | <50mΩ max. |
| Insulation resistance: | >1000MΩ @ 500VDC |
| Operating life: | >50,000 cycles full load. |
| Dims: | 16mm dia. x 24mm H |
| Panel cutout: | 16.2mm |
| Panel thicknes: | 6mm max. |
RoHS compliant
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Product Specifications
| Specification | 800-537 | 800-538 |
|---|---|---|
|
Description
|
16mm switch - Flat button. Apem AV0630C940 | 16mm switch - Curved button Apem AV1630C940 |
