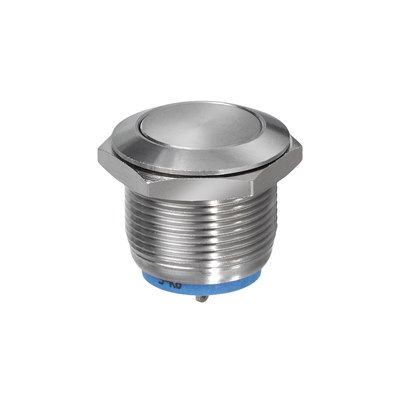

APEM AV Vandal Resistant 19mm switch IP65 SPNO
by Apem
A low profile security switch for use in harsh external environments.
Robust stainless steel bushing and plunger, sealed to IP65 requirements.
SPNO momentary action, with gold plated contacts for low level switching.
Through panel mounting, connections via solder tags.
| Rating: | 50mA max. resistive @ 24V DC |
| Contact resistance: | <100mΩ |
| Insulation resistance: | >1000MΩ/500VDC |
| Temp. range: | -30° to +70°C |
| Dims: | 22.0 dia x 23.8 H |
| Panel Cutout: | 19.2mm. |
| Max panel thicknes: | 10.5mm |
RoHS compliant
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Product Specifications
| Specification | 800-544 |
|---|---|
|
Description
|
22mm switch - IP65 sealed. Apem AV09C703D240E |
