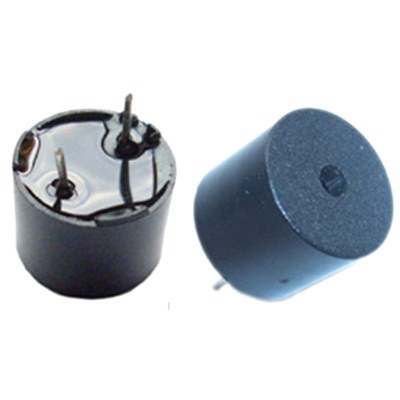

Subminiature Buzzers
Miniature electromagnetic buzzer with internal oscillator drive circuit for direct PCB mounting. Available in 5V or 12V versions, with pin spacing of either 6.5mm or 7.6mm.
Potted flux-proof base and tear off top label permit board cleaning.
5V versions cover input range 4-7VDC. 12V versions cover range 8-16VDC.
| Frequency: | 2.3 kHz ± 0.3 |
| Operating current: | 30mA max. |
| Sound output: | 85 db at 10 cm |
| Temperature range: | -20°C to +60°C |
| Dims: | 12mm dia. x 9.5mm h. |
RoHS compliant
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Product Specifications
| Specification | 400-805 | 400-712 | 400-812 |
|---|---|---|---|
|
Pin spacing
|
7.6mm | 6.5mm | 7.6mm |
|
Operating Voltage
|
4-7V DC | 8-16V DC | 8-16V DC |
|
Rated Voltage
|
5V | 12V | 12V |
