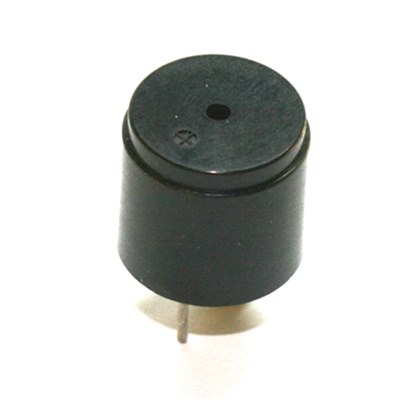

Miniature Piezo Sounder
by Plustone
Miniature piezo buzzer with drive circuit.
View product specifications
| Max. rated voltage: | 5Vdc |
| Operating voltage: | 1-12Vdc |
| Operating current: | 15mA at 5Vdc. |
| Frequency: | 4.0kHz ±500kHz |
| Sound output: | 83db at 10cm at 5Vdc. |
| Case material: | ABS |
| Temp. range: | -20°C to +70°C |
| Dims: | 15.4mm dia. x 13.9mm h. |
| PCB pins: | 0.8mm dia. (spacing 7.62mm) |
RoHS compliant
Pricing Options
Have a question? Call us on +44 (0) 1582 47 00 00
Product Specifications
| Specification | 400-605 |
|---|---|
|
Pin spacing
|
7.62mm |
|
Operating Voltage
|
1.0-12V DC |
|
Rated Voltage
|
5V |
